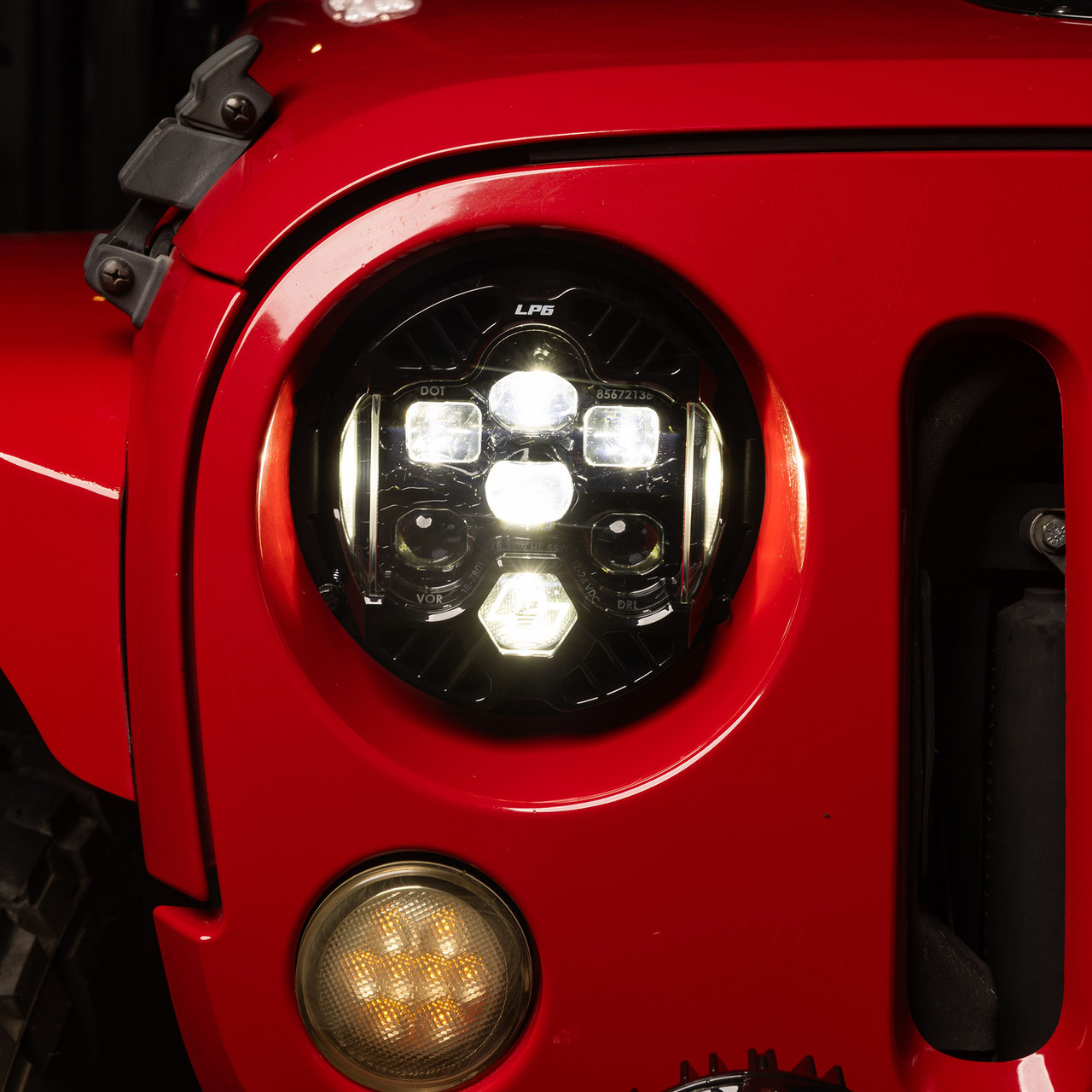

DOT LP6 LED Headlight Kit - Jeep 2007-2018 Wrangler JK

$899.95


NOTE: This kit is designed to replace the OEM halogen headlights for the 2007-2018 JK and will not work for the 2017-2018 Saraha/Rubicon trim levels with LED headlights

SELECT YOUR VEHICLE*
PRODUCT OPTIONS

OR

Proposition 65 Warning
Baja Designs California Proposition 65

Description

Your Jeep JK deserves headlights as capable as the vehicle itself. The Baja Designs DOT LP6 is our first-ever road-legal headlight kit designed to fit seamless in the Jeep Wrangler JK. Inspired by the same LP6 trusted in the toughest off-road races, it’s been re-engineered utilizing projector optics to meet FMVSS 108 standards delivering maximum road-legal performance with Baja Designs racing DNA maintain that same iconic look. Featuring a standard high and low beam the DOT LP6 has integrated white, amber daytime running lights. And with JK-specific brackets and wiring harness integration is effortless, with a factory fit that feels like it was always meant to be there. Backed by Baja Designs’ 30-Day Satisfaction Guarantee and Lifetime Limited Warranty, the DOT LP6 is the ultimate combination of rugged durability, style, and road-legal usability. NOTE: uService® is NOT a feature of DOT products. If tampered, it will void the warranty. Our Limited Lifetime Warranty is valid only if sent back for repairs.

Features:

  • Low and high beam functionality
  • Daytime running lights for daytime safety available in amber or white
  • Jeep Wrangler JK specific mounting brackets included
  • Low beam 3,480 raw lumens | 42,568.7 candela
  • High beam 5,280 raw lumens | 62,611.5 candela
  • High beam 40w / 2.8A
  • Low beam 26w / 1.8A
  • DRL: 5w / 0.4A
  •
  • NOTE: This kit is designed to replace the OEM halogen headlights for the 2007-2018 JK and will not work for the 2017-2018 Saraha/Rubicon trim levels with LED headlights

Includes:

  • (2x) DOT LP6 White or Amber DRL Lights
  • (2x) JK Headlight Brackets
  • (2x) Wiring Harness adaptors
  • (1x) Wiring Harness backlight add-on
  • All Necessary Mounting Hardware

The Baja Designs Advantage:

  • ClearView – All the Light, Right Where You Need It
  • MoistureBlock – Waterproof, Rain Proof, Submersible
  • CopperDrive – Safely Driving LEDs at 100%
  • 5000K Daylight – Less Driver Fatigue, Natural Color
  • Satisfaction Guarantee – 30-Day Money Back Guarantee
  • Limited Lifetime Warranty – Complete Purchase Protection

FITS

Jeep Wrangler JK 2007-2018
Detailed Specs

SKU: 44-8310

Standards & Compliance

Standards/Compliance (Impact Resistance) IP69K (Waterproof up to 9ft & Pressure Washable)
Standards/Compliance (Water Resistance) IK10 Compliant (Mechanical Impact Testing)
Standards/Compliance (Durability) Exceeds MIL-STD810G (Mil-Spec Testing); FMVSS 108 for automotive and motorcycle requirement

Dimensions

Depth (in.) 3.2
Height (in.) 6.5
Length (in.) 6.5

Specifications

Description DRL Color: Clear; DRL: 5W; Candela: 42,568 (Low) 62,611 (High)
Voltage 10.5 to 32V
Wattage (W) Single Lamp at 13.8V; 26W (L) 40W (H)
Brightness (Lumens) 3,480 (Low) 5,280 (High)
Beam Pattern Low Beam: 10Lux out to 50meters (Standard Spec for DOT Headlights)
Wiring Harness Included Yes; Brackets Included
Amperage Rating (A) 1.8A (L) 2.8A (H)

SKU: 44-8311

Dimensions

Depth (in.) 3.2
Height (in.) 6.5
Length (in.) 6.5

Specifications

Description DRL Color: Amber; DRL: 5W; Candela: 42,568 (Low) 62,611 (High)
Voltage 10.5 to 32V
Wattage (W) Single Lamp at 13.8V; 26W (L) 40W (H)
Brightness (Lumens) 3,480 (Low) 5,280 (High)
Beam Pattern Low Beam: 10Lux out to 50meters (Standard Spec for DOT Headlights)
Wiring Harness Included Yes; Brackets Included
Amperage Rating (A) 1.8A (L) 2.8A (H)

Standards & Compliance

Standards/Compliance (Impact Resistance) IP69K (Waterproof up to 9ft & Pressure Washable)
Standards/Compliance (Water Resistance) IK10 Compliant (Mechanical Impact Testing)
Standards/Compliance (Durability) Exceeds MIL-STD810G (Mil-Spec Testing); FMVSS 108 for automotive and motorcycle requirement
