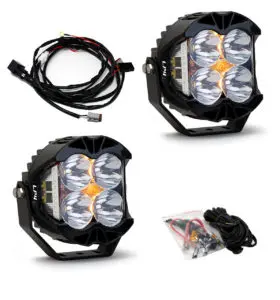

LP4 Pro LED Auxiliary Light Pod Pair

SKU: 297801
$849.95

Light Pattern
Color
Please choose a color.
Color*
Clear
Amber
Add to Cart

The LP4 is the smallest variant in the LP line up but maintains all of the power and features of its siblings. The LP4 features a total of 8,750 lumens and a 200 degree spread of usable LED light. This light pumps out 7,050 forward projecting lumens and 1,700 lumens of dedicated peripheral lighting courtesy of our patented Integrated Peripheral Technology (IPT).

To keep your light performing at its highest potential, the LP4 integrates our proprietary Direct Ducted Cooling (DDC) technology. This feature allows air to travel through the front of the housing, over the rear heat sinks – drastically improving cooling capacity and performance. With an amber day-time running light, the LP4 will fulfill all your lighting needs.

Choose from a variety of patterns to suit your needs:

Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Driving (42 degrees) and spot (8 degrees) optics to provide you with a smooth blend of light for both near-field applications and distance (Lighting Zone 3).

Spot: A longer and narrower 8-degree beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 & 5).

Satisfaction Guarantee – 30-Day Money Back Guarantee

Limited Lifetime Warranty – Complete Purchase Protection

uService – Replaceable Lenses And Optics

ClearView – All The Light, Right Where You Need It

MoistureBlock – Waterproof, Rain Proof, Submersible

CopperDrive – Only LED Driven At 100 Percent

5000K Daylight – Less Driver Fatigue, Natural Color

Detailed Specs

SKU: 297801

Specifications

Product Type LP4 Pro LED Light Pod Pair w/ Wiring Harness
Description Spot; Clear; Pair
Beam Pattern Spot
Lens Color Clear
Lighting Modes Beam/Day-Time Running Backlighting
Light Quantity 2
Lighting Type Forward Projecting
Lighting Technology LED
Lighting Quantity 4
Brightness (Lumens) 7,050
Wattage (W) 60
Amperage Rating (A) 6.5
Secondary Lighting Type Integrated Peripheral Technology (IPT)
Secondary Lighting Technology LED
Secondary Light Quantity 4 LEDs
Secondary Brightness (Lumens) 1,700
Secondary Wattage (W) 15
Secondary Amperage Rating (A) 1.0
Backlight Wattage (W) 4.83
Backlight Amperage Rating (A) 0.35
Terminal Type Mating Connector
Terminal Connector DT06-4S Deutsch
Average Rated Life (hr.) 49,930
Housing Color Black
Housing Material Hard Anodized Machined Aluminum
Lens Material Hardcoated Polycarbonate
Bezel Material Billet Machined Aluminum
Mounting Hardware Included Yes
Mounting Hardware Material Stainless Steel
Wiring Harness Included Yes
Overvoltage Protection Built-In
Universal or Specific Universal

Dimensions

Length (in.) 5.1
Height (in.) 5.1
Depth (in.) 3.2
Weight (lbs.) 2.8

Standards & Compliance

Standards/Compliance (Durability) Exceeds MIL-STD810G (Mil-Spec Testing)
Standards/Compliance (Water Resistance) IP69K (Waterproof up to 9ft & Pressure Washable)
Standards/Compliance (Impact Resistance) IK10 Compliant (Mechanical Impact Testing)

SKU: 297803

Specifications

Product Type LP4 Pro LED Light Pod Pair w/ Wiring Harness
Description Driving/Combo; Clear; Pair
Beam Pattern Driving/Combo
Lens Color Clear
Lighting Modes Beam/Day-Time Running Backlighting
Light Quantity 2
Lighting Type Forward Projecting
Lighting Technology LED
Lighting Quantity 4
Brightness (Lumens) 7,050
Wattage (W) 60
Amperage Rating (A) 6.5
Secondary Lighting Type Integrated Peripheral Technology (IPT)
Secondary Lighting Technology LED
Secondary Light Quantity 4 LEDs
Secondary Brightness (Lumens) 1,700
Secondary Wattage (W) 15
Secondary Amperage Rating (A) 1.0
Backlight Wattage (W) 4.83
Backlight Amperage Rating (A) 0.35
Terminal Type Mating Connector
Terminal Connector DT06-4S Deutsch
Average Rated Life (hr.) 49,930
Housing Color Black
Housing Material Hard Anodized Machined Aluminum
Lens Material Hardcoated Polycarbonate
Bezel Material Billet Machined Aluminum
Mounting Hardware Included Yes
Mounting Hardware Material Stainless Steel
Wiring Harness Included Yes
Overvoltage Protection Built-In
Universal or Specific Universal

Dimensions

Length (in.) 5.1
Height (in.) 5.1
Depth (in.) 3.2
Weight (lbs.) 2.8

Standards & Compliance

Standards/Compliance (Durability) Exceeds MIL-STD810G (Mil-Spec Testing)
Standards/Compliance (Water Resistance) IP69K (Waterproof up to 9ft & Pressure Washable)
Standards/Compliance (Impact Resistance) IK10 Compliant (Mechanical Impact Testing)

SKU: 297813

Specifications

Product Type LP4 Pro LED Light Pod Pair w/ Wiring Harness
Description Driving/Combo; Amber; Pair
Beam Pattern Driving/Combo
Lens Color Amber
Lighting Modes Beam/Day-Time Running Backlighting
Light Quantity 2
Lighting Type Forward Projecting
Lighting Technology LED
Lighting Quantity 4
Brightness (Lumens) 7,050
Wattage (W) 60
Amperage Rating (A) 6.5
Secondary Lighting Type Integrated Peripheral Technology (IPT)
Secondary Lighting Technology LED
Secondary Light Quantity 4 LEDs
Secondary Brightness (Lumens) 1,700
Secondary Wattage (W) 15
Secondary Amperage Rating (A) 1.0
Backlight Wattage (W) 4.83
Backlight Amperage Rating (A) 0.35
Terminal Type Mating Connector
Terminal Connector DT06-4S Deutsch
Average Rated Life (hr.) 49,930
Housing Color Black
Housing Material Hard Anodized Machined Aluminum
Lens Material Hardcoated Polycarbonate
Bezel Material Billet Machined Aluminum
Mounting Hardware Included Yes
Mounting Hardware Material Stainless Steel
Wiring Harness Included Yes
Overvoltage Protection Built-In
Universal or Specific Universal

Dimensions

Length (in.) 5.1
Height (in.) 5.1
Depth (in.) 3.2
Weight (lbs.) 2.8

Standards & Compliance

Standards/Compliance (Durability) Exceeds MIL-STD810G (Mil-Spec Testing)
Standards/Compliance (Water Resistance) IP69K (Waterproof up to 9ft & Pressure Washable)
Standards/Compliance (Impact Resistance) IK10 Compliant (Mechanical Impact Testing)
