Husqvarna XL Pro (D/C) Headlight Kit - Husqvarna 2017-‘23 FE250-501/S; ’20-23 TE150i-300i/TX300i; 2016-’23 701 Enduro; 2020 701 EnduroLR

SKU: 507020
Proposition 65 Warning
Baja Designs California Proposition 65

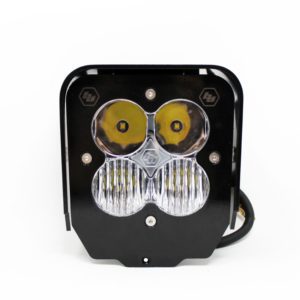

The XL Pro for the Husqvarna 2017-‘23 FE250-501/S; ’20-23 TE150i-300i/TX300i; 2016-’23 701 Enduro; 2020 701 EnduroLR has been designed for the enthusiast and the racer looking to extend their ride time and increase daytime awareness. This kit features an extreme amount of beam pattern adjustability. Our High Speed Spot Reflectors provide record setting distance, wide peripheral spread. A seamlessly smooth beam pattern, and offers a 20 percent dimming feature. The XL Pro now features a variety of Cree LEDs to provide a 20 percent more reach, with the same power consumption! An industry first 30 Day Satisfaction Guarantee and Limited Lifetime Warranty is included for the ultimate in purchase protection. If you have a factory dual sport bike and would like to maintain the High/Low function of the bike please look at the part XL, Husqvarna/KTM Hi-Low Harness.

Satisfaction Guarantee – 30-Day Money Back Guarantee

Limited Lifetime Warranty – Complete Purchase Protection

uService – Replaceable Lenses And Optics

ClearView – All The Light, Right Where You Need It

MoistureBlock – Waterproof, Rain Proof, Submersible

CopperDrive – Only LED Driven At 100 Percent

5000K Daylight – Less Driver Fatigue, Natural Color

Electric start bikes that require a stator modification or rewind will have to the purchase a switch and wiring harness kit. Please refer to the “STATOR Reference Chart” found under the Tech Info header. (Does Fit 701 Model). For Electric-Start Bikes: Some electric-start bikes require the stator to be modified or rewound as well as the addition of a new rectifier/regulator to run LED lights. If your bike requires a new rectifier/regulator please order part (#12-2004) (please provide year/make/model of bike). Detailed stator modification instructions and hardware is included for all bikes that require a stator modification to run LED lights. If your bike requires the stator to be rewound, please call Baja Designs for an order confirmation number to have this service performed.

KTM/Husqvarna Hi-Low Headlight Wiring Harness For XL Pro/XL80 Lights
$45.95 +ADD
Husqvarna 701 Enduro 2016-2023
Husqvarna 701 Enduro LR 2020-2020
Husqvarna FE250 2017-2023
Husqvarna FE350 2017-2023
Husqvarna FE350S 2020-2023
Husqvarna FE450 2017-2023
Husqvarna FE501 2017-2023
Husqvarna FE501S 2020-2023
Husqvarna TE150i 2020-2023
Husqvarna TE250i 2020-2023
Husqvarna TE300i 2020-2023
Husqvarna TX300i 2020-2022
Husqvarna TX300i Rockstar Edition 2021-2021
See More
Detailed Specs
Included with kit:

SKU: 500003


Depth (in.) 3.650
Height (in.) 4.430
Length (in.) 4.430
Weight (lbs.) 2.450


Amperage Rating (A) 3
Average Rated Life (hr.) 49,930
Beam Pattern Driving/Combo
Bezel Material Billet Machined Aluminum
Brightness (Lumens) 4095
Description Driving/Combo; Clear
Housing Color Black
Housing Material Hard Anodized and Powder Coated Cast Aluminum
Lens Color Clear
Lens Material Hardcoated Polycarbonate
Light Quantity 1
Lighting Modes High Beam/Dimming Feature (20%)
Lighting Quantity 4
Lighting Technology Cree XP-L LED
Lighting Type Forward Projecting
Mounting Hardware Included Yes
Mounting Hardware Material Stainless Steel
Overvoltage Protection Built-In
Product Type XL Pro LED Light Pod
Universal or Specific Universal
Wattage (W) 41.400
Wiring Harness Included No

Standards & Compliance

Standards/Compliance (Durability) Exceeds MIL-STD810G (Mil-Spec Testing)
Standards/Compliance (Impact Resistance) IK10 Compliant (Mechanical Impact Testing)
Standards/Compliance (Water Resistance) IP69K (Waterproof up to 9ft & Pressure Washable)
