Ford OnX6+ 40 Inch Grille Light Bar Kit - Ford 2010-14 F-150; NOTE: SVT Raptor

SKU: 457513
starting at:
$1,522.95
All Baja Designs LED products (except RTL and SAE) are experiencing 4-6 week average lead times. We are shipping orders as quickly as possible.
SELECT YOUR VEHICLE*
PRODUCT OPTIONS

DESCRIPTION

Hide it till’ you light it. Now you can easily mount the same light used by top race teams and keep it hidden cleanly behind the grille of your Ford Raptor. At an impressive 38,900 lumens, the 40-inch OnX6 provides enough light for our Team Enlightened racers. The OnX6 LED Light Bar is the only light bar on the market that has the distance of an 8-inch HID with the smooth spread of an LED.

We use Cree LEDs that last up to 50,000 hours and have a 5000K light temperature; this mimics natural daylight for better trail recognition and less eye fatigue. These light bars are completely weatherproof and have special battery management technology to save power, eliminate flickering and protect your F150’s wiring.

If you’re looking for the guaranteed farthest-projecting LED light on the market, look no further. An industry-first, 30-day Satisfaction Guarantee and Limited Lifetime Warranty is included for the ultimate in purchase protection. The OnX6 LED Light Bar is BRIGHTER, BOLDER, BETTER.

  • Satisfaction Guarantee – 30-Day Money Back Guarantee
  • Limited Lifetime Warranty – Complete Purchase Protection
  • uService – Replaceable Lenses And Optics
  • ClearView – All The Light, Right Where You Need It
  • MoistureBlock – Waterproof, Rain Proof, Submersible
  • CopperDrive – Only LED Driven At 100 Percent
  • 5000K Daylight – Less Driver Fatigue, Natural Color

FITS

2010-2014 Ford F-150 SVT Raptor
Detailed Specs

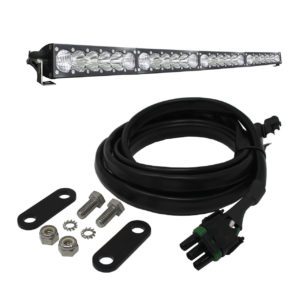

Included with kit:

SKU: 454003

Dimensions

Depth (in.) 4.29
Height (in.) 2.69
Length (in.) 40
Weight (lbs.) 15.05

Specifications

Amperage Rating (A) 26.8 (High); 22.4 (Low)
Average Rated Life (hr.) 49,930
Beam Pattern Driving/Combo
Bezel Material Billet Machined Aluminum
Brightness (Lumens) 38,900 (High); 32,440 (Low)
Description Straight; Driving/Combo; Clear
Housing Color Black
Housing Material Aircraft Grade Aluminum with Mil-Spec Hard Anodize
Lens Color Clear
Lighting Modes Hardcoated Polycarbonate
Light Quantity 1
Lens Material High Beam/Low Beam
Lighting Quantity 24
Lighting Type LED
Lighting Technology Forward Projecting
Mounting Hardware Description Mounting Brackets
Mounting Hardware Included Yes
Mounting Hardware Material Stainless Steel
Overvoltage Protection Built-In
Product Type OnX6+ 40 Inch LED Light Bar
Universal or Specific Universal
Wattage (W) 346 (High); 290 (Low)
Wiring Harness Description Hi-Low Dongle
Wiring Harness Included No

Standards & Compliance

Standards/Compliance (Durability) Exceeds MIL-STD810G (Mil-Spec Testing)
Standards/Compliance (Water Resistance) IK10 Compliant (Mechanical Impact Testing)
Standards/Compliance (Impact Resistance) IP69K (Waterproof up to 9ft & Pressure Washable)
