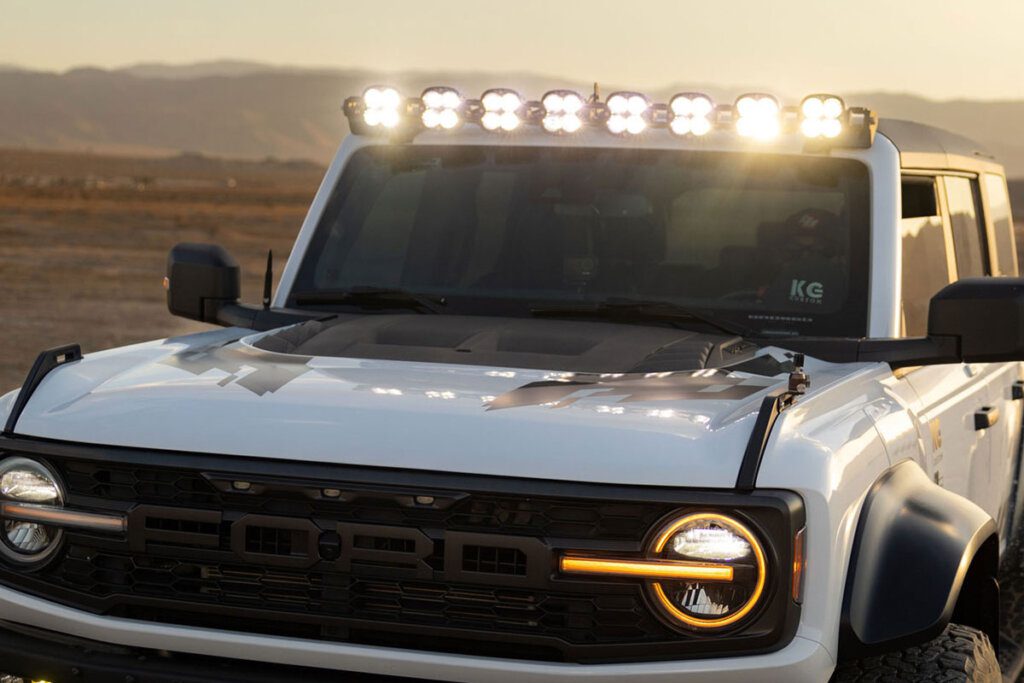

XL Linkable LED Light Bar For Trucks, UTVs, and Off-road Vehicles

Experience full adjustment and total performance with the Baja Designs XL Linkable LED light bar kit, engineered for enthusiasts seeking to take charge with a lighting package that is completely customizable. Built around our popular XL shallow moto housing, the XL Linkable can be built with 3 up to 9 XL Sport or XL Pro forward projecting lights that provide a smooth blend due to the use of multiple lenses illuminating zones 1, 2, 3 and 4 simultaneously. The unique feature of our XL Linkable system provides 45 degrees of vertical pitch adjustment within each light or the entire unit. Completely independent horizontal adjustment per light allows for straight or arc configurations to perfectly match the lines of your vehicle’s bumper or roofline.

Full Adjustment, Total Performance - The XL Linkable

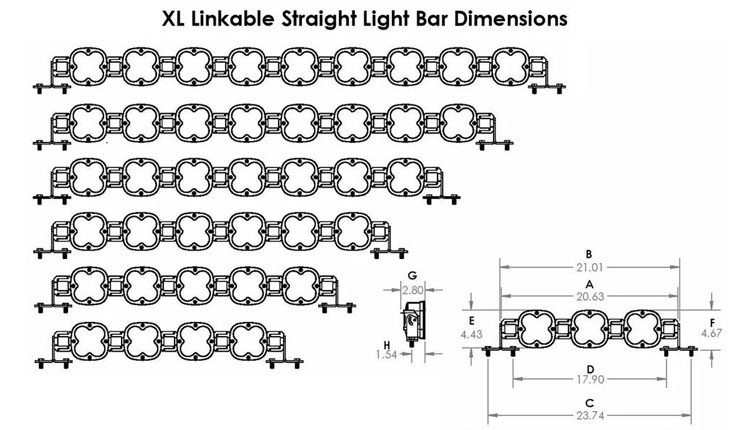

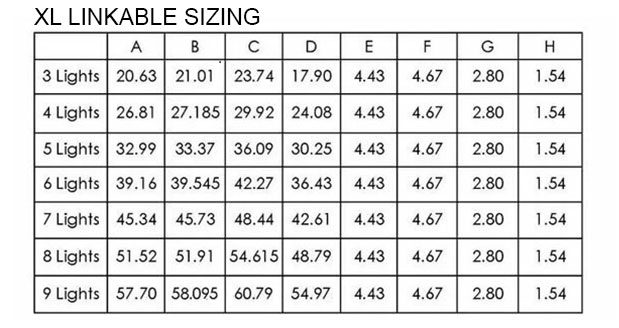

NOTE:  All sizing is in inches. Each mounting bold is in a slotted hole. Dimensions D and C represent the center of the slot in the mounting brackets. The slot allows for 0.1875″ of adjustment each direction from center. Also, six lights and above will use a support bracket that will add 0.188″ to A, B, C and D dimensions.

Precision Adjustability Meets Seamless Design

The XL Linkable gives you full adjustment, total performance. Allowing for precise aiming of up to nine Baja Designs XL Sport lights, each offering 3,162 lumens or XL Pro producing 4,095 lumens of foward illumination. Universal and vehicle specific kits are available to provide the ultimate in precision lighting.

XL Linkable Features:

  • 45 degrees of vertical pitch adjustment within each light or the entire unit.
  • Independent horizontal adjustment per light allows for straight or arc configurations.
  • Pre-Load kit included.
  • Black rock guards included.

The Choice Is Yours

The original XL Sport Linkable offered 3,162 lumens per light, which set a new standard for customizable modular light bars. The XL Pro Linkable builds upon that proven design and significantly ups the power with 4,095 lumens per light. For those running the full nine-light system, that is 36,855 lumens of total power.
