Power Distribution System

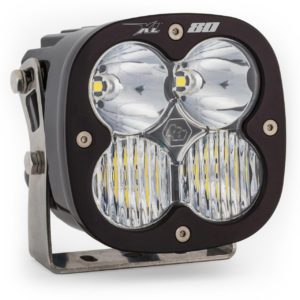

XL80 LED Auxiliary Light Pod - Universal
SKU: 670005
starting at:
$411.95
PRODUCT OPTIONS
Baja Designs California Proposition 65
WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov.
Description
Choose to take your off-road lighting to the next level with BD’s 9,500 lumen XL80. Similar to BD’s XL Pro model, the XL80 offers a 20 percent dimming feature, a powder coated housing and an anodized bezel. However, this is where the similarities end. The XL80 features a very powerful LED for greater visibility and increased brightness. As always, Baja Designs offers a 30 Day Satisfaction Guarantee, and Limited Lifetime Warranty.
Satisfaction Guarantee – 30-Day Money Back Guarantee
Limited Lifetime Warranty – Complete Purchase Protection
uService – Replaceable Lenses And Optics
ClearView – All The Light, Right Where You Need It
MoistureBlock – Waterproof, Rain Proof, Submersible
CopperDrive – Only LED Driven At 100 Percent
5000K Daylight – Less Driver Fatigue, Natural Color
NOTE: This light does not come with a wiring harness. The applicable wiring harness for this light is 640115.
Detailed Specs
SKU: 670003
Dimensions
| Depth (in.) | 3.650 |
| Height (in.) | 4.430 |
| Length (in.) | 4.430 |
| Weight (lbs.) | 2.450 |
Specifications
| Amperage Rating (A) | 5.500 |
| Average Rated Life (hr.) | 49,930 |
| Beam Pattern | Driving/Combo |
| Bezel Material | Billet Machined Aluminum |
| Brightness (Lumens) | 9022 |
| Description | Driving/Combo; Clear |
| Housing Color | Black |
| Housing Material | Hard Anodized and Powder Coated Cast Aluminum |
| Lens Color | Clear |
| Lens Material | Hardcoated Polycarbonate |
| Light Quantity | 1 |
| Lighting Modes | High Beam/Dimming Feature (20%) |
| Lighting Quantity | 4 |
| Lighting Technology | Cree LED |
| Lighting Type | Forward Projecting |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | Stainless Steel |
| Overvoltage Protection | Built-In |
| Product Type | XL80 LED Light Pod |
| Universal or Specific | Universal |
| Wattage (W) | 75.900 |
| Wiring Harness Included | No |
Standards & Compliance
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
SKU: 670005
Dimensions
| Depth (in.) | 3.650 |
| Height (in.) | 4.430 |
| Length (in.) | 4.430 |
| Weight (lbs.) | 2.450 |
Specifications
| Amperage Rating (A) | 5.500 |
| Average Rated Life (hr.) | 49,930 |
| Beam Pattern | Wide Cornering |
| Bezel Material | Billet Machined Aluminum |
| Brightness (Lumens) | 9022 |
| Description | Wide Cornering; Clear |
| Housing Color | Black |
| Housing Material | Hard Anodized and Powder Coated Cast Aluminum |
| Lens Color | Clear |
| Lens Material | Hardcoated Polycarbonate |
| Light Quantity | 1 |
| Lighting Modes | High Beam/Dimming Feature (20%) |
| Lighting Quantity | 4 |
| Lighting Technology | Cree LED |
| Lighting Type | Forward Projecting |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | Stainless Steel |
| Overvoltage Protection | Built-In |
| Product Type | XL80 LED Light Pod |
| Universal or Specific | Universal |
| Wattage (W) | 75.900 |
| Wiring Harness Included | No |
Standards & Compliance
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
SKU: 670006
Dimensions
| Depth (in.) | 3.650 |
| Height (in.) | 4.430 |
| Length (in.) | 4.430 |
| Weight (lbs.) | 2.450 |
Specifications
| Amperage Rating (A) | 5.500 |
| Average Rated Life (hr.) | 49,930 |
| Beam Pattern | Work/Scene |
| Bezel Material | Billet Machined Aluminum |
| Brightness (Lumens) | 9022 |
| Description | Work/Scene; Clear |
| Housing Color | Black |
| Housing Material | Hard Anodized and Powder Coated Cast Aluminum |
| Lens Color | Clear |
| Lens Material | Hardcoated Polycarbonate |
| Light Quantity | 1 |
| Lighting Modes | High Beam/Dimming Feature (20%) |
| Lighting Quantity | 4 |
| Lighting Technology | Cree LED |
| Lighting Type | Forward Projecting |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | Stainless Steel |
| Overvoltage Protection | Built-In |
| Product Type | XL80 LED Light Pod |
| Universal or Specific | Universal |
| Wattage (W) | 75.900 |
| Wiring Harness Included | No |
Standards & Compliance
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
SKU: 670013
Dimensions
| Depth (in.) | 3.650 |
| Height (in.) | 4.430 |
| Length (in.) | 4.430 |
| Weight (lbs.) | 2.450 |
Specifications
| Amperage Rating (A) | 5.500 |
| Average Rated Life (hr.) | 49,930 |
| Beam Pattern | Driving/Comb |
| Bezel Material | Billet Machined Aluminum |
| Brightness (Lumens) | 9022 |
| Description | Driving/Combo; Amber |
| Housing Color | Black |
| Housing Material | Hard Anodized and Powder Coated Cast Aluminum |
| Lens Color | Amber |
| Lens Material | Hardcoated Polycarbonate |
| Light Quantity | 1 |
| Lighting Modes | High Beam/Dimming Feature (20%) |
| Lighting Quantity | 4 |
| Lighting Technology | Cree LED |
| Lighting Type | Forward Projecting |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | Stainless Steel |
| Overvoltage Protection | Built-In |
| Product Type | XL80 LED Light Pod |
| Universal or Specific | Universal |
| Wattage (W) | 75.900 |
| Wiring Harness Included | No |
Standards & Compliance
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
SKU: 670015
Dimensions
| Depth (in.) | 3.650 |
| Height (in.) | 4.430 |
| Length (in.) | 4.430 |
| Weight (lbs.) | 2.450 |
Specifications
| Amperage Rating (A) | 5.500 |
| Average Rated Life (hr.) | 49,930 |
| Beam Pattern | Wide Cornering |
| Bezel Material | Billet Machined Aluminum |
| Brightness (Lumens) | 9022 |
| Description | Wide Cornering; Amber |
| Housing Color | Black |
| Housing Material | Hard Anodized and Powder Coated Cast Aluminum |
| Lens Color | Amber |
| Lens Material | Hardcoated Polycarbonate |
| Light Quantity | 1 |
| Lighting Modes | High Beam/Dimming Feature (20%) |
| Lighting Quantity | 4 |
| Lighting Technology | Cree LED |
| Lighting Type | Forward Projecting |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | Stainless Steel |
| Overvoltage Protection | Built-In |
| Product Type | XL80 LED Light Pod |
| Universal or Specific | Universal |
| Wattage (W) | 75.900 |
| Wiring Harness Included | No |
Standards & Compliance
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
