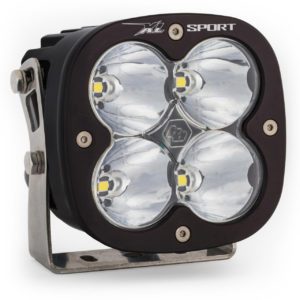

XL Sport LED Auxiliary Light Pod - Universal

SKU: 560003
starting at:
$205.95


NOTE:
This light does not come with a wiring harness. Make sure to “add” the applicable wiring harness 640115 for this light.

PRODUCT OPTIONS
Light Pattern
Lens Color
Quantity
Proposition 65 Warning
Baja Designs California Proposition 65

Description

The Baja Designs XL Sport auxiliary light makes it easy to illuminate the terrain in front of your vehicle and is the perfect combination of affordability and performance. The XL Sport uses Baja Designs' trademarked high-speed spot reflectors providing for a longer and wider beam pattern with our next generation LEDs that offers 3,162 raw lumens per each light. This makes the XL Sport the perfect auxiliary light for off-road vehicles such as trucks, vans, UTVs and motorcycles. The single light kit comes with XL mounting hardware only. Designed for users who want reliable off-road lighting solutions, all Baja Designs lights are backed by a 30-day satisfaction guarantee and a limited lifetime warranty for the ultimate in purchase protection.  NOTE: This light does not come with a wiring harness. The applicable wiring harness for this light is 640115 (On/Off Wiring Harness 3-pin)

ELS™ Scores:
Click to learn more about our Effective Lighting Score (ELS)
XL Sport Driving Combo (Clear): ELS 80°/ 6.4/ 324'/ 2765
XL Sport Spot (Clear): ELS 60⁰/ 3.9/ 418'/ 2253

Lens pattern options:

Driving Combo: Maximum trail coverage in a single light. The driving combo pattern is equipped with both driving and spot optics to provide you with a smooth blend of light for both near field applications in lighting zones 1 and 2 and distance in zone 3.

Spot: A longer and narrower 9-degree focus beam for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Cornering and/or Driving Combo beam lights.

Wide Cornering: The wide cornering pattern offers a 42-degree flattened horizontal beam, reducing blind spots and enhancing peripheral visibility in lighting zones 1 and 2. This cornering pattern is perfect for inclement weather such as dust, snow, rain or fog conditions while also perfect for seeing obstacles on the trail, trail conditions, and potential hazards - making it easier to navigate through tight turns, winding trails, or through wooded areas.



Satisfaction Guarantee – 30-Day Money Back Guarantee

Limited Lifetime Warranty – Complete Purchase Protection

uService – Replaceable Lenses And Optics

ClearView – All The Light, Right Where You Need It

MoistureBlock – Waterproof, Rain Proof, Submersible

CopperDrive – Only LED Driven At 100 Percent

5000K Daylight – Less Driver Fatigue, Natural Color

On/Off Wiring Harness - OnX6 (10"-20") / S8 (10"-30") / XL Sport/XL Pro
Universal
$30.95 +ADD
XL Single Rock Guard
Universal
Color: Black
$10.95 +ADD
XL Single Rock Guard
Universal
Color: Baja Amber
$10.95 +ADD
XL Single Rock Guard
Universal
Color: Clear
$10.95 +ADD
OnX6+/S8/XL/LP Series Security Hardware Kit
Universal
$20.95 +ADD
Detailed Specs

SKU: 560001

Dimensions

Depth (in.) 3.650
Height (in.) 4.430
Length (in.) 4.430
Weight (lbs.) 2.450

Specifications

Amperage Rating (A) 2.200
Average Rated Life (hr.) 49,930
Beam Pattern Spot
Bezel Material Billet Machined Aluminum
Brightness (Lumens) 3162
Description Spot; Clear
Housing Color Black
Housing Material Powder Coated Cast Aluminum
Lens Color Clear
Lens Material Hardcoated Polycarbonate
Light Quantity 1
Lighting Modes Beam
Lighting Quantity 4
Lighting Technology LED
Lighting Type Forward Projecting
Mounting Hardware Included Yes
Mounting Hardware Material Stainless Steel
Overvoltage Protection Built-In
Product Type XL Sport LED Light Pod
Universal or Specific Universal
Wattage (W) 30.360
Wiring Harness Included No

Standards & Compliance

Standards/Compliance (Durability) Exceeds MIL-STD810G (Mil-Spec Testing)
Standards/Compliance (Impact Resistance) IK10 Compliant (Mechanical Impact Testing)
Standards/Compliance (Water Resistance) IP69K (Waterproof up to 9ft & Pressure Washable)

SKU: 560003

Dimensions

Depth (in.) 3.650
Height (in.) 4.430
Length (in.) 4.430
Weight (lbs.) 2.450

Specifications

Amperage Rating (A) 2.200
Average Rated Life (hr.) 49,930
Beam Pattern Driving/Combo
Bezel Material Billet Machined Aluminum
Brightness (Lumens) 3162
Description Driving/Combo; Clear
Housing Color Black
Housing Material Powder Coated Cast Aluminum
Lens Color Clear
Lens Material Hardcoated Polycarbonate
Light Quantity 1
Lighting Modes Beam
Lighting Quantity 4
Lighting Technology LED
Lighting Type Forward Projecting
Mounting Hardware Included Yes
Mounting Hardware Material Stainless Steel
Overvoltage Protection Built-In
Product Type XL Sport LED Light Pod
Universal or Specific Universal
Wattage (W) 30.360
Wiring Harness Included No

Standards & Compliance

Standards/Compliance (Durability) Exceeds MIL-STD810G (Mil-Spec Testing)
Standards/Compliance (Impact Resistance) IK10 Compliant (Mechanical Impact Testing)
Standards/Compliance (Water Resistance) IP69K (Waterproof up to 9ft & Pressure Washable)

SKU: 560005

Dimensions

Depth (in.) 3.650
Height (in.) 4.430
Length (in.) 4.430
Weight (lbs.) 2.450

Specifications

Amperage Rating (A) 2.200
Average Rated Life (hr.) 49,930
Beam Pattern Wide Cornering
Bezel Material Billet Machined Aluminum
Brightness (Lumens) 3162
Description Wide Cornering; Clear
Housing Color Black
Housing Material Powder Coated Cast Aluminum
Lens Color Clear
Lens Material Hardcoated Polycarbonate
Light Quantity 1
Lighting Modes Beam
Lighting Quantity 4
Lighting Technology LED
Lighting Type Forward Projecting
Mounting Hardware Included Yes
Mounting Hardware Material Stainless Steel
Overvoltage Protection Built-In
Product Type XL Sport LED Light Pod
Universal or Specific Universal
Wattage (W) 30.360
Wiring Harness Included No

Standards & Compliance

Standards/Compliance (Durability) Exceeds MIL-STD810G (Mil-Spec Testing)
Standards/Compliance (Impact Resistance) IK10 Compliant (Mechanical Impact Testing)
Standards/Compliance (Water Resistance) IP69K (Waterproof up to 9ft & Pressure Washable)

SKU: 560013

Dimensions

Depth (in.) 3.650
Height (in.) 4.430
Length (in.) 4.430
Weight (lbs.) 2.450

Specifications

Amperage Rating (A) 2.200
Average Rated Life (hr.) 49,930
Beam Pattern Driving/Combo
Bezel Material Billet Machined Aluminum
Brightness (Lumens) 3162
Description Driving/Combo; Amber
Housing Color Black
Housing Material Powder Coated Cast Aluminum
Lens Color Amber
Lens Material Hardcoated Polycarbonate
Light Quantity 1
Lighting Modes Beam
Lighting Quantity 4
Lighting Technology LED
Lighting Type Forward Projecting
Mounting Hardware Included Yes
Mounting Hardware Material Stainless Steel
Overvoltage Protection Built-In
Product Type XL Sport LED Light Pod
Universal or Specific Universal
Wattage (W) 30.360
Wiring Harness Included No

Standards & Compliance

Standards/Compliance (Durability) Exceeds MIL-STD810G (Mil-Spec Testing)
Standards/Compliance (Impact Resistance) IK10 Compliant (Mechanical Impact Testing)
Standards/Compliance (Water Resistance) IP69K (Waterproof up to 9ft & Pressure Washable)

SKU: 560015

Dimensions

Depth (in.) 3.650
Height (in.) 4.430
Length (in.) 4.430
Weight (lbs.) 2.450

Specifications

Amperage Rating (A) 2.200
Average Rated Life (hr.) 49,930
Beam Pattern Wide Cornering
Bezel Material Billet Machined Aluminum
Brightness (Lumens) 3162
Description Wide Cornering; Amber
Housing Color Black
Housing Material Powder Coated Cast Aluminum
Lens Color Amber
Lens Material Hardcoated Polycarbonate
Light Quantity 1
Lighting Modes Beam
Lighting Quantity 4
Lighting Technology LED
Lighting Type Forward Projecting
Mounting Hardware Included Yes
Mounting Hardware Material Stainless Steel
Overvoltage Protection Built-In
Product Type XL Sport LED Light Pod
Universal or Specific Universal
Wattage (W) 30.360
Wiring Harness Included No

Standards & Compliance

Standards/Compliance (Durability) Exceeds MIL-STD810G (Mil-Spec Testing)
Standards/Compliance (Impact Resistance) IK10 Compliant (Mechanical Impact Testing)
Standards/Compliance (Water Resistance) IP69K (Waterproof up to 9ft & Pressure Washable)
