Textron/Arctic Cat Squadron Unlimited Headlight Kit - Arctic Cat 2020-21 Wildcat XX; Textron 2018-19 Wildcat XX
DESCRIPTION

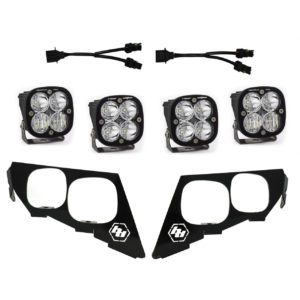

Your Textron XX is a high-performance machine, your headlights need to be able to keep up. This Wildcat XX “Unlimited” Headlight Kit features two Squadron Pros and two Squadron Racers for serious lighting in all conditions.
The Squadron Pro is the go-to choice when you want to annihilate the night and blast away the darkness. Each compact LED light boasts an impressive 4,600 lumens at 40 watts, to throw out brilliant illumination that’s easy on your battery. The secret to Squadron Pro’s brightness is Cree LEDs, which provide 20% more reach than standard LEDs with the same power consumption.
This kit also features a pair of Squadron Sports. Each Squadron Sport uses four Cree LEDs to produce 3,150 lumens at 26 watts to produce crisp, clear light that pierces the darkness and improves visibility in any and all conditions.
The need for front bumper lighting or roof-mounted light bars are a thing of the past. This plug-and-play mounting kit includes two vehicle-specific mounting brackets and a wiring harness, allowing you to use your factory switch and mounting hardware.
- Satisfaction Guarantee – 30 Day Money Back Guarantee
- Limited Lifetime Warranty – Complete Purchase Protection
- uService – Replaceable Lenses And Optics
- ClearView – All The Light, Right Where You Need It
- MoistureBlock – Waterproof, Rain Proof, Submersible
- CopperDrive – Only LED Driven At 100%
- 5000K Daylight – Less Driver Fatigue, Natural Color
FITS
SKU: 720001
Dimensions
| Depth (in.) | 2.770 |
| Height (in.) | 3.070 |
| Length (in.) | 3.070 |
| Weight (lbs.) | 0.750 |
Specifications
| Amperage Rating (A) | 3.300 |
| Average Rated Life (hr.) | 49,930 |
| Beam Pattern | Racer Spot |
| Bezel Material | Billet Machined Aluminum |
| Brightness (Lumens) | 2800 |
| Description | Racer Spot; Clear |
| Housing Color | Black |
| Housing Material | Hard Anodized and Powder Coated Cast Aluminum |
| Lens Color | Clear |
| Lighting Modes | Hardcoated Polycarbonate |
| Light Quantity | 1 |
| Lens Material | Beam |
| Lighting Quantity | 4 |
| Lighting Type | High Intensity Cree LED |
| Lighting Technology | Forward Projecting |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | Stainless Steel |
| Overvoltage Protection | Built-In |
| Product Type | Squadron Racer Edition LED Light Pod |
| Wattage (W) | 45.540 |
| Wiring Harness Included | No |
Standards & Compliance
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Water Resistance) | IK10 Compliant (Mechanical Impact Testing) |
| Standards/Compliance (Impact Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
SKU: 490003
Dimensions
| Depth (in.) | 2.770 |
| Height (in.) | 3.070 |
| Length (in.) | 3.070 |
| Weight (lbs.) | 0.750 |
Specifications
| Amperage Rating (A) | 3 |
| Average Rated Life (hr.) | 49,930 |
| Beam Pattern | Driving/Combo |
| Bezel Material | Billet Machined Aluminum |
| Brightness (Lumens) | 4095 |
| Description | Driving/Combo; Clear |
| Housing Color | Black |
| Housing Material | Hard Anodized and Powder Coated Cast Aluminum |
| Lens Color | Clear |
| Lighting Modes | Hardcoated Polycarbonate |
| Light Quantity | 1 |
| Lens Material | Beam |
| Lighting Quantity | 4 |
| Lighting Type | Cree LED (2 Types) |
| Lighting Technology | Forward Projecting |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | Stainless Steel |
| Overvoltage Protection | Built-In |
| Product Type | Squadron Pro LED Light Pod |
| Wattage (W) | 41.400 |
| Wiring Harness Included | No |
Standards & Compliance
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Water Resistance) | IK10 Compliant (Mechanical Impact Testing) |
| Standards/Compliance (Impact Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
