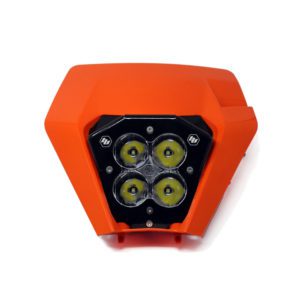

KTM XL80 (D/C) Headlight Kit w/ ’17-19 Shell – KTM 2017-19 250 EXC-F; 2019 250 XC-W TPI/300 XC-W TPI; 2017-19 350 EXC-F; 2019 450 EXC-F; 2017-19 500 EXC-F

SKU: 677198
starting at:
$494.95 $0.00


If you’re looking to go night riding look no further, our Baja Designs drop-in replacement headlight kit is a major upgrade from stock. This rugged headlight kit provides ample adjustability, and features a significant amount of vertical and horizontal spread for the ultimate trail coverage where you want and need it most.

This model utilizes our XL80 which produces 9,500 lumens and features a 20 percent dimming feature. Installation on this kit is as easy as installing a factory headlight, we provide a plug-and-play connector and all necessary hardware. This kit comes preinstalled into a factory KTM Headlight mask (2017-2019). We offer this kit for the bikes that didn’t come equipped with a headlight shell or for the customer who doesn’t want to disassemble their factory unit. USPTO Reg No. 5,766,659

Baja Designs offers an industry-first, 30-day Satisfaction Guarantee and Limited Lifetime Warranty for the ultimate in purchase protection.

  • Satisfaction Guarantee – 30-Day Money Back Guarantee
  • Limited Lifetime Warranty – Complete Purchase Protection
  • uService – Replaceable Lenses And Optics
  • ClearView – All The Light, Right Where You Need It
  • MoistureBlock – Waterproof, Rain Proof, Submersible
  • CopperDrive – Only LED Driven At 100 Percent
  • 5000K Daylight – Less Driver Fatigue, Natural Color

12-9016 - This is an add on part that was designed to retain the factory dual sport bike's hi/low pin out for their bar switch. The Hi-Beam Indicator will always be on when used with our Hi/Low KTM relay harness. Unsure if your bike is powerful


2017-2019 KTM 250 EXC-F
2019-2019 KTM 250 XC-W TPI
2019-2019 KTM 300 XC-W TPI
2019-2019 KTM 300 XC-W TPI Six Days
2017-2019 KTM 350 EXC-F
2019-2019 KTM 450 EXC-F Six Days
2017-2019 KTM 500 EXC-F
Detailed Specs
Included with kit:

SKU: 670003


Product Type XL80 LED Light Pod
Description Driving/Combo; Clear
Beam Pattern Driving/Combo
Lens Color Clear
Lighting Modes High Beam/Dimming Feature (20%)
Light Quantity 1
Lighting Type Forward Projecting
Lighting Technology Cree LED
Lighting Quantity 4
Brightness (Lumens) 9,500
Wattage (W) 80
Amperage Rating (A) 5.5
Average Rated Life (hr.) 49,930
Housing Color Black
Housing Material Hard Anodized and Powder Coated Cast Aluminum
Lens Material Hardcoated Polycarbonate
Bezel Material Billet Machined Aluminum
Mounting Hardware Included Yes
Mounting Hardware Material Stainless Steel
Wiring Harness Included No
Overvoltage Protection Built-In
Universal or Specific Universal


Length (in.) 4.43
Height (in.) 4.43
Depth (in.) 3.65
Weight (lbs.) 2.45

Standards & Compliance

Standards/Compliance (Durability) Exceeds MIL-STD810G (Mil-Spec Testing)
Standards/Compliance (Water Resistance) IP69K (Waterproof up to 9ft & Pressure Washable)
Standards/Compliance (Impact Resistance) IK10 Compliant (Mechanical Impact Testing)
