KTM XL Pro (D/C) Headlight Kit – KTM 2011-13 250 SX-F/250 XC-F/250 XCF-W; 2012-13 350 EXC-F; 2011-13 350 SX-F/350 XC-F; 2012-13 350 XCF-W; 2008-12 450 XC-F; 2012-13 500 EXC

SKU: 500009
starting at:
$393.95 $0.00
SELECT YOUR VEHICLE*
PRODUCT OPTIONS

DESCRIPTION

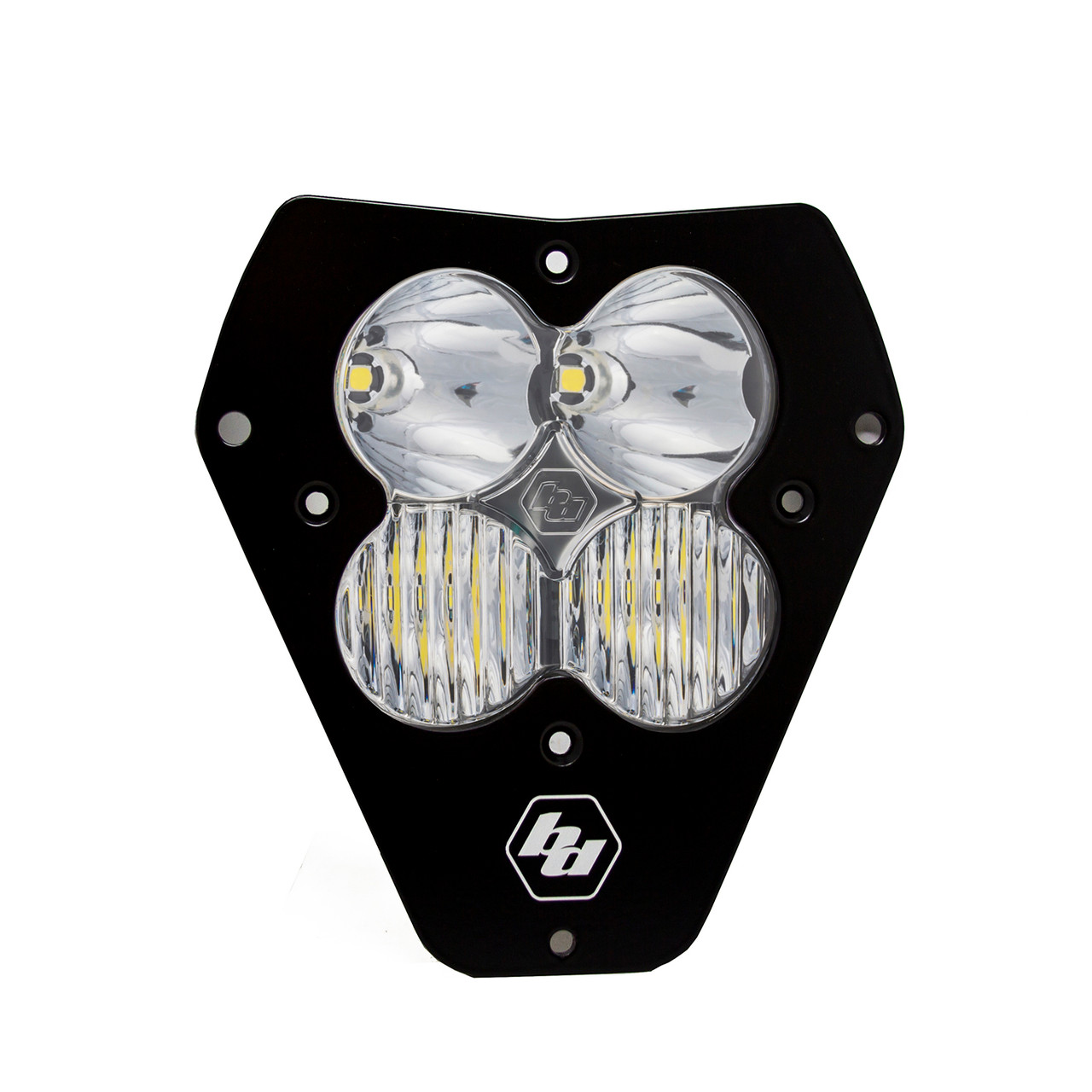

Specifically designed for those riders who are looking for more than just your average headlight. The XL Pro, LED KTM 2008-2013 Kit is in a league of its own, producing 4,600 lumens and 40 watts giving you the perfect mix of power and performance, and offers a 20 percent dimming feature. The XL Pro, LED KTM 2008-2013 Kit has been meticulously designed by our engineers to give our riders an extremely light weight (2.45 lbs) race light, while presenting a unique style and appearance that you will only find from Baja Designs. The XL Pro now features a variety of Cree LEDs to provide a 20 percent more reach, with the same power consumption! The XL Pro, LED KTM 2008-2013 Kit is plug and play making for an easy install. An industry first 30 Day Satisfaction Guarantee and Limited Lifetime Warranty is included for the ultimate in purchase protection.

Satisfaction Guarantee – 30-Day Money Back Guarantee

Limited Lifetime Warranty – Complete Purchase Protection

uService – Replaceable Lenses And Optics

ClearView – All The Light, Right Where You Need It

MoistureBlock – Waterproof, Rain Proof, Submersible

CopperDrive – Only LED Driven At 100 Percent

5000K Daylight – Less Driver Fatigue, Natural Color

Electric start bikes that require a stator modification or rewind will have to the purchase a switch and wiring harness kit. Please refer to the “STATOR Reference Chart” found under the Tech Info header. For Electric-Start Bikes: Some electric-start bikes require the stator to be modified or rewound as well as the addition of a new rectifier/regulator to run LED lights. If your bike requires a new rectifier/regulator please order part (#12-2004) (please provide year/make/model of bike). Detailed stator modification instructions and hardware is included for all bikes that require a stator modification to run LED lights. If your bike requires the stator to be rewound, please call Baja Designs for an order confirmation number to have this service performed. Hi-Beam Indicator will always be on when used with our Hi/Low KTM relay harness P/N:12-9016. 2013 SX, XC, XC-W KTM models will need to purchase the 2014-2016 KTM kits.

Note:
Electric start bikes that require a stator modification or rewind will have to the purchase a switch and wiring harness kit. Please refer to the “STATOR Reference Chart” found under the Tech Info header. For Electric-Start Bikes: Some

FITS

2011-2013 KTM 250 SX-F
2011-2013 KTM 250 XC-F
2011-2013 KTM 250 XCF-W
2012-2013 KTM 350 EXC-F
2011-2013 KTM 350 SX-F
2011-2013 KTM 350 XC-F
2012-2013 KTM 350 XCF-W
2008-2012 KTM 450 XC-F
2012-2013 KTM 500 EXC
2012-2013 KTM 500 EXC Six Days
SEE ALL
Detailed Specs
Included with kit:

SKU: 500003

Specifications

Product Type XL Pro LED Light Pod
Description Driving/Combo; Clear
Beam Pattern Driving/Combo
Lens Color Clear
Lighting Modes High Beam/Dimming Feature (20%)
Light Quantity 1
Lighting Type Forward Projecting
Lighting Technology Cree XP-L LED
Lighting Quantity 4
Brightness (Lumens) 4,900
Wattage (W) 40
Amperage Rating (A) 2.9
Average Rated Life (hr.) 49,930
Housing Color Black
Housing Material Hard Anodized and Powder Coated Cast Aluminum
Lens Material Hardcoated Polycarbonate
Bezel Material Billet Machined Aluminum
Mounting Hardware Included Yes
Mounting Hardware Material Stainless Steel
Wiring Harness Included No
Overvoltage Protection Built-In
Universal or Specific Universal

Dimensions

Length (in.) 4.43
Height (in.) 4.43
Depth (in.) 3.65
Weight (lbs.) 2.45

Standards & Compliance

Standards/Compliance (Durability) Exceeds MIL-STD810G (Mil-Spec Testing)
Standards/Compliance (Water Resistance) IP69K (Waterproof up to 9ft & Pressure Washable)
Standards/Compliance (Impact Resistance) IK10 Compliant (Mechanical Impact Testing)
Installation Instructions
Disclaimer and Warning

Disclaimer

Buyer is responsible for ensuring that it uses the products (and its vehicle) in accordance with all applicable laws, regulations, guidelines, and standards of care. Buyer acknowledges that some products may only be used when off-roading, and Buyer will comply with all vehicle and road safety guidelines. Buyer is solely responsible for (and will indemnify and hold Bestop harmless for) any claims, losses, damages, fines, fees, costs, or other amounts arising out of Buyer’s non-compliance with these provisions.

Baja Designs California Proposition 65

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
