Ford Squadron SAE Fog Pocket Light Kit – Ford 1999-10 F-250/350 Super Duty

SKU: 630821
starting at:
$419.95 $0.00 $419.95 $0.00
SELECT YOUR VEHICLE*
PRODUCT OPTIONS

DESCRIPTION

The Ford Squadron SAE Fog Pocket Light Kit allows you to mount two Squadron Pro auxiliary lights in the factory location. This kit features a pair of Squadron SAE, which have a combined output of 4,960 lumens. Squadron SAE from Baja Designs offers the same superior lighting and longevity as our LED off-road lights, optimized and approved for street use.

They’ve been ruthlessly tested at the factory and tested on the trails across countless rough trails and fast races. Rest assured they are serious upgrade from most LED, HID, and Halogen factory fog lights.

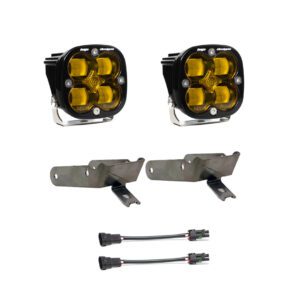

This plug-and-play kit includes two Squadron Pro Wide Cornering lights, two mounting brackets for the Ford Super Duty (99-10), and a wiring adapter, allowing you to use your factory switch and mounting hardware. The Wide Driving pattern offers a 42-degree flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 & 2).

  • Satisfaction Guarantee – 30-Day Money Back Guarantee
  • Limited Lifetime Warranty – Complete Purchase Protection
  • uService – Replaceable Lenses And Optics
  • ClearView – All The Light, Right Where You Need It
  • MoistureBlock – Waterproof, Rain Proof, Submersible
  • CopperDrive – Only LED Driven At 100 Percent
  • 5000K Daylight – Less Driver Fatigue, Natural Color

FITS

1999-2010 Ford F-250 Super Duty
1999-2010 Ford F-350 Super Duty
Detailed Specs
Included with kit:

SKU: 257805

Specifications

Product Type Squadron SAE LED Light Pod Pair w/ Wiring Harness
Description Wide Cornering; Clear; Pair
Beam Pattern Wide Cornering
Lens Color Clear
Lighting Modes Beam
Light Quantity 2
Lighting Type Forward Projecting
Lighting Technology Cree LED
Lighting Quantity 4
Brightness (Lumens) 2,480
Wattage (W) 22
Amperage Rating (A) 1.6
Average Rated Life (hr.) 49,930
Housing Color Black
Housing Material Hard Anodized and Powder Coated Cast Aluminum
Lens Material Hardcoated Polycarbonate
Bezel Material Billet Machined Aluminum
Mounting Hardware Included Yes
Mounting Hardware Material Stainless Steel
Wiring Harness Included Yes
Overvoltage Protection Built-In

Dimensions

Length (in.) 3.07
Height (in.) 3.07
Depth (in.) 2.77
Weight (lbs.) 0.75

Standards & Compliance

Street Legal Yes
DOT Approved Yes
Standards/Compliance (SAE) SAE Standard J583
Standards/Compliance (Durability) Exceeds MIL-STD810G (Mil-Spec Testing)
Standards/Compliance (Water Resistance) IP69K (Waterproof up to 9ft & Pressure Washable)
Standards/Compliance (Impact Resistance) IK10 Compliant (Mechanical Impact Testing)
