Ford Squadron/S2 Unlimited Fog Pocket Light Kit - Ford 2017-20 F-150; NOTE: Raptor

SKU: 447567
starting at:
$1,496.95
All Baja Designs LED products (except RTL and SAE) are experiencing 4-6 week average lead times. We are shipping orders as quickly as possible.
SELECT YOUR VEHICLE*
PRODUCT OPTIONS

DESCRIPTION

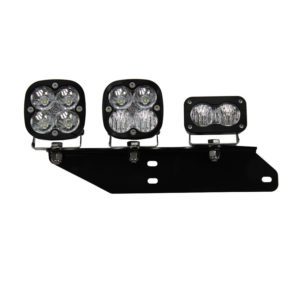

Separate your truck from the pack and take your lighting to the highest level with the Baja Designs 2017-2020 Ford Raptor “Unlimited” Fog Light Kit. This kit features two Squadron Pros, two Squadron Racers and two S2 Pros for no-compromise performance. The Squadron Pro is the go-to choice when you want to annihilate the night and blast away the darkness. Each compact LED light boasts an impressive 4,600 lumens at 40 watts, to throw out brilliant brightness that is easy on your battery. The secret to Squadron Pro’s brilliance is Cree LEDs, which provide 20% more reach than standard LEDs with the same power consumption.

The Squadron Sport uses four Cree LEDs to produce 3,150 lumens at 26 watts to produce crisp, clear light that pierces the darkness and improves visibility in any and all conditions.

Last but certainly not least, the compact S2 offers an incredible 2,450 lumens of brilliance packed into a tiny 3 x 2-inch housing. Ounce for ounce, the S2 Pro is the brightest LED light on the market.

This mounting kit includes two Ford-specific mounting brackets and a wiring harness, allowing you to use your factory switch.

  • Satisfactions Guarantee – 30 Day Money Back Guarantee
  • Limited Lifetime Warranty – Complete Purchase Protection
  • uService – Replaceable Lenses And Optics
  • ClearView – All The Light, Right Where You Need It
  • MoistureBlock – Waterproof, Rain Proof, Submersible
  • CopperDrive – Only LED Driven At 100%
  • 5000K Daylight – Less Driver Fatigue, Natural Color

FITS

2017-2020 Ford F-150 Raptor
Squadron Light Pod Lens Kit
Universal
Light Pattern: Driving/Combo
Color: Amber
$24.95 +ADD
S2 Light Pod Lens Kit
Universal
Light Pattern: Wide Cornering
Color: Amber
$24.95 +ADD
Detailed Specs
Included with kit:

SKU: 720001

Dimensions

Depth (in.) 2.770
Height (in.) 3.070
Length (in.) 3.070
Weight (lbs.) 0.750

Specifications

Amperage Rating (A) 3.300
Average Rated Life (hr.) 49,930
Beam Pattern Racer Spot
Bezel Material Billet Machined Aluminum
Brightness (Lumens) 2800
Description Racer Spot; Clear
Housing Color Black
Housing Material Hard Anodized and Powder Coated Cast Aluminum
Lens Color Clear
Lighting Modes Hardcoated Polycarbonate
Light Quantity 1
Lens Material Beam
Lighting Quantity 4
Lighting Type High Intensity Cree LED
Lighting Technology Forward Projecting
Mounting Hardware Included Yes
Mounting Hardware Material Stainless Steel
Overvoltage Protection Built-In
Product Type Squadron Racer Edition LED Light Pod
Wattage (W) 45.540
Wiring Harness Included No

Standards & Compliance

Standards/Compliance (Durability) Exceeds MIL-STD810G (Mil-Spec Testing)
Standards/Compliance (Water Resistance) IK10 Compliant (Mechanical Impact Testing)
Standards/Compliance (Impact Resistance) IP69K (Waterproof up to 9ft & Pressure Washable)

SKU: 490003

Dimensions

Depth (in.) 2.770
Height (in.) 3.070
Length (in.) 3.070
Weight (lbs.) 0.750

Specifications

Amperage Rating (A) 3
Average Rated Life (hr.) 49,930
Beam Pattern Driving/Combo
Bezel Material Billet Machined Aluminum
Brightness (Lumens) 4095
Description Driving/Combo; Clear
Housing Color Black
Housing Material Hard Anodized and Powder Coated Cast Aluminum
Lens Color Clear
Lighting Modes Hardcoated Polycarbonate
Light Quantity 1
Lens Material Beam
Lighting Quantity 4
Lighting Type Cree LED (2 Types)
Lighting Technology Forward Projecting
Mounting Hardware Included Yes
Mounting Hardware Material Stainless Steel
Overvoltage Protection Built-In
Product Type Squadron Pro LED Light Pod
Wattage (W) 41.400
Wiring Harness Included No

Standards & Compliance

Standards/Compliance (Durability) Exceeds MIL-STD810G (Mil-Spec Testing)
Standards/Compliance (Water Resistance) IK10 Compliant (Mechanical Impact Testing)
Standards/Compliance (Impact Resistance) IP69K (Waterproof up to 9ft & Pressure Washable)

SKU: 480005

Dimensions

Depth (in.) 1.680
Height (in.) 1.760
Length (in.) 2.930
Weight (lbs.) 0.500

Specifications

Amperage Rating (A) 1.700
Average Rated Life (hr.) 49,930
Beam Pattern Wide Cornering
Bezel Material Billet Machined Aluminum
Brightness (Lumens) 2245
Description Wide Cornering; Clear
Housing Color Black
Housing Material Hard Anodized and Powder Coated Cast Aluminum
Lens Color Clear
Lighting Modes Hardcoated Polycarbonate
Light Quantity 1
Lens Material Beam
Lighting Quantity 2
Lighting Type LED
Lighting Technology Forward Projecting
Mounting Hardware Included Yes
Mounting Hardware Material Stainless Steel
Overvoltage Protection Built-In
Product Type S2 Pro LED Light Pod
Wattage (W) 23.460
Wiring Harness Included No

Standards & Compliance

Standards/Compliance (Durability) Exceeds MIL-STD810G (Mil-Spec Testing)
Standards/Compliance (Water Resistance) IK10 Compliant (Mechanical Impact Testing)
Standards/Compliance (Impact Resistance) IP69K (Waterproof up to 9ft & Pressure Washable)
