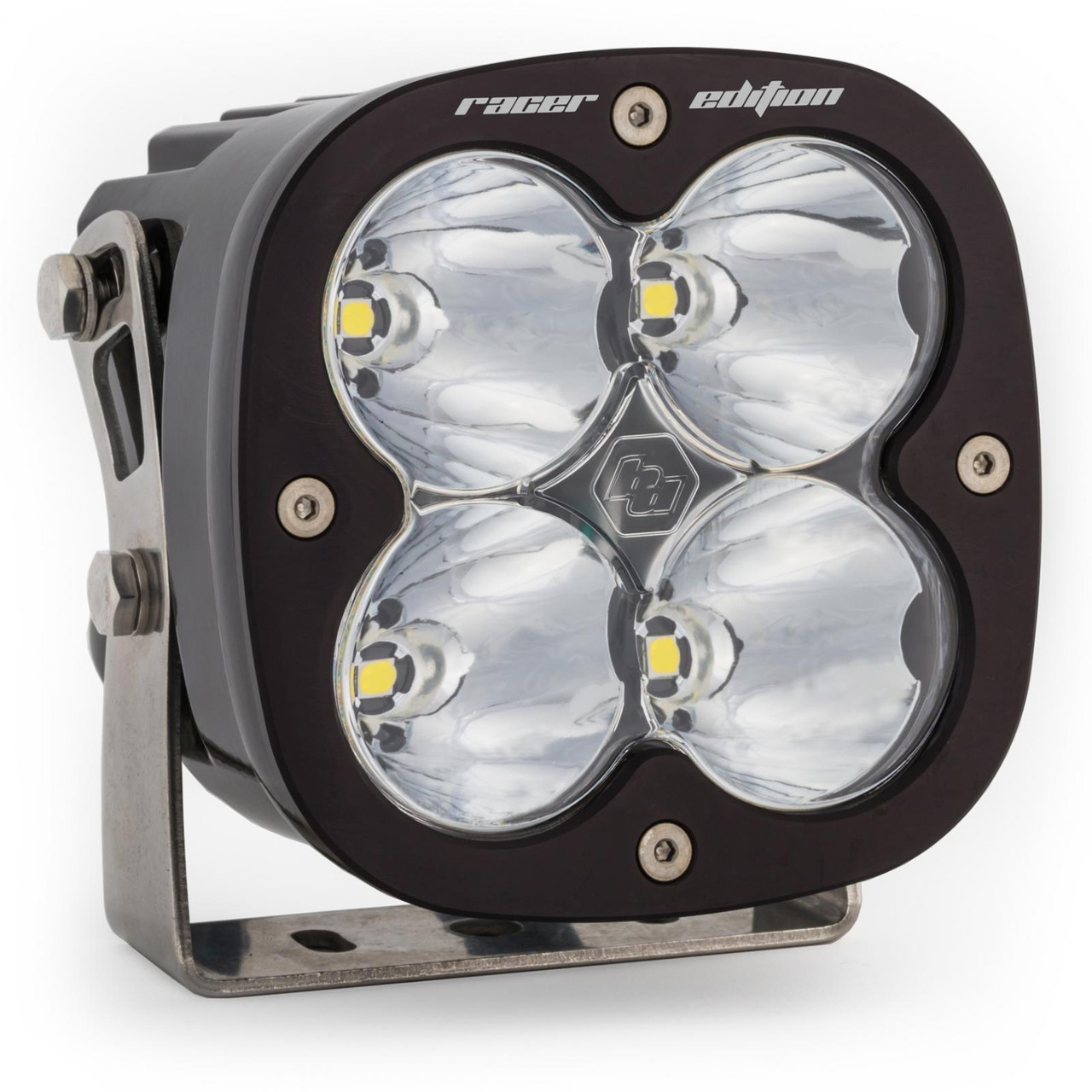

XL Racer Edition LED Auxiliary Light Pod - Universal
NOTE: This light does not come with a wiring harness. For high/low accessibility, the applicable wiring harness is 640119. For on/off accessibility the applicable wiring harness is 640115.
OR
Description
The Baja Designs XL Racer features next-generation LEDs, delivering 2,800 lumens with an 85% increase in distance over its predecessor. Designed for off-road enthusiasts, the XL Racer throws light 40% farther than the XL Pro, utilizing high-intensity LEDs housed in a durable hard anodized and powder-coated cast aluminum body. With a lifespan of nearly 50,000 hours, this light enhances your nighttime adventures with bright, efficient illumination.
The XL Racer Edition is equipped with Baja Designs' trademarked High-Speed Spot reflectors, creating a longer beam pattern that reaches lighting zone 5. It also includes a 20% dimming feature for added versatility. Like all Baja Designs products, the XL Racer is backed by a 30-Day Satisfaction Guarantee and a Limited Lifetime Warranty, ensuring you get the best in auxiliary LED lighting.
Key Features:
Satisfaction Guarantee: 30-Day Money-Back Guarantee
Limited Lifetime Warranty: Complete Purchase Protection
uService: Replaceable Lenses and Optics
ClearView: All the light, right where you need it
MoistureBlock: Waterproof, rainproof, and submersible
CopperDrive: The only LED driven at 100% capacity
5000K Daylight: Reduces driver fatigue with natural color lighting
Experience superior performance and reliability with the Baja Designs XL Racer, designed to take your off-roading to the next level.
SKU: 680002
Dimensions
| Depth (in.) | 3.650 |
| Height (in.) | 4.430 |
| Length (in.) | 4.430 |
| Weight (lbs.) | 2.450 |
Specifications
| Amperage Rating (A) | 3.300 |
| Average Rated Life (hr.) | 49,930 |
| Beam Pattern | Racer Edition Spot |
| Bezel Material | Billet Machined Aluminum |
| Brightness (Lumens) | 2800 |
| Description | Racer Edition Spot; Clear |
| Housing Color | Black |
| Housing Material | Hard Anodized and Powder Coated Cast Aluminum |
| Lens Color | Clear |
| Lens Material | Hardcoated Polycarbonate |
| Light Quantity | 1 |
| Lighting Modes | High Beam/Dimming Feature (20%) |
| Lighting Quantity | 4 |
| Lighting Technology | High Intensity LED |
| Lighting Type | Forward Projecting |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | Stainless Steel |
| Overvoltage Protection | Built-In |
| Product Type | XL80 Racer Edition LED Light Pod |
| Universal or Specific | Universal |
| Wattage (W) | 45.540 |
| Wiring Harness Included | No |
Standards & Compliance
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
