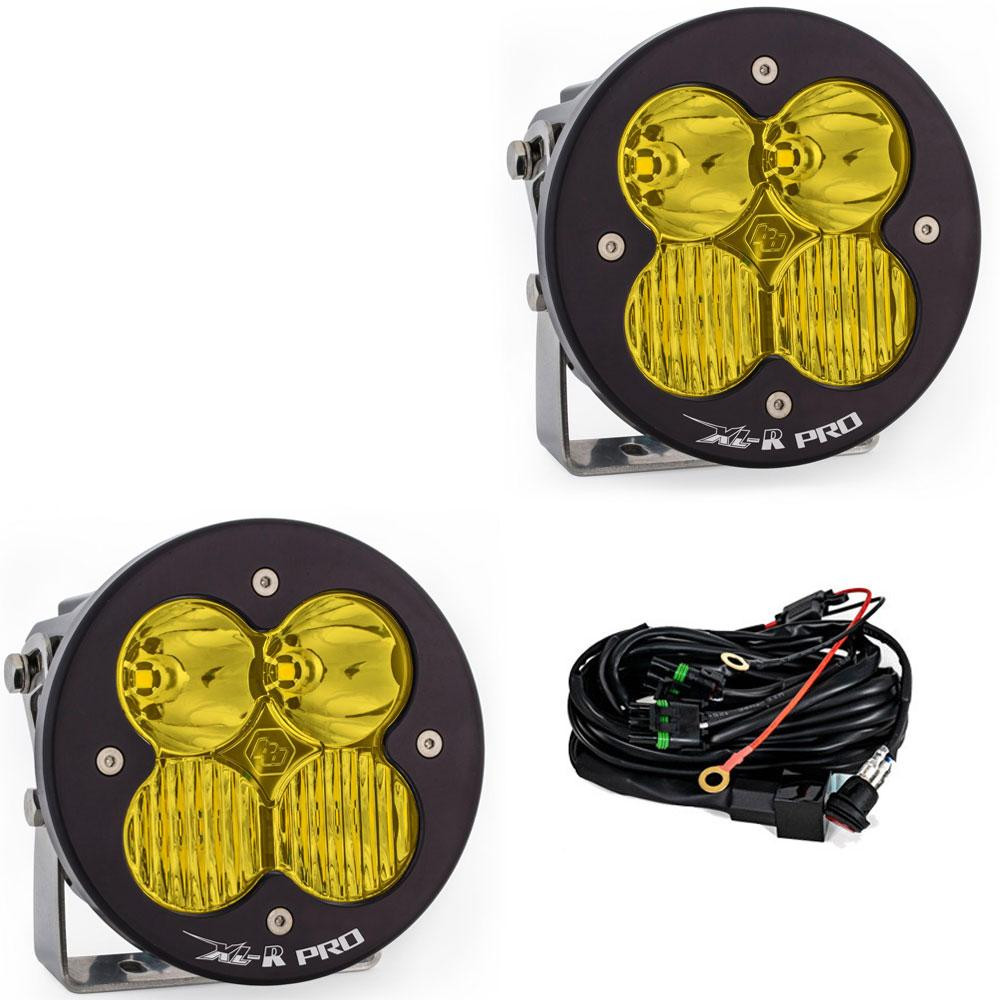

XL-R Pro LED Auxiliary Light Pod Pair - Universal

Description
The Baja Designs XL-R Pro auxiliary light pair is designed to illuminate the terrain in front of your vehicle, making it ideal for off-road enthusiasts who need powerful lighting in a versatile package. Featuring a round outer bezel, the XL-R Pro uses Baja Designs' trademarked high-speed spot reflectors, offering both a longer and wider beam pattern. Equipped with next-generation LED technology, the XL-R Pro delivers 65% greater distance than the previous generation model, while producing an impressive 4,095 raw lumens per light.
Built for durability, the XL-R Pro includes a 20% dimming feature, making it perfect for various off-road vehicles such as trucks, vans, UTVs, and motorcycles. This two-light kit comes complete with a wiring harness and all the necessary mounting hardware for a quick and easy installation. Designed with reliability in mind, all Baja Designs lights come with a 30-day satisfaction guarantee and a limited lifetime warranty, ensuring total purchase protection.
ELS™ Scores:
XL Pro Driving Combo (Clear): ELS 88°/ 6.6/ 432'/ 3764
XL Pro Spot (Clear): ELS 60°/ 4.1/ 498'/ 3228
XL Pro Wide Cornering (Clear): ELS 102°/ 5.8/ 162'/ 3363
Lens Pattern Options:
Driving Combo: Provides maximum trail coverage in a single light. Equipped with both driving and spot optics, this pattern offers a smooth blend of light for near-field applications (zones 1 and 2) and distance coverage (zone 3).
Spot: A 9-degree narrow focus beam designed for long-distance illumination down the trail or road. Best used in conjunction with additional Wide Cornering or Driving Combo beam lights.
Wide Cornering: This 42-degree flattened horizontal beam enhances peripheral visibility by reducing blind spots. Ideal for inclement weather conditions like dust, snow, rain, or fog, and perfect for navigating obstacles on winding trails or tight turns.
Key Features:
Satisfaction Guarantee: 30-Day Money Back Guarantee
Limited Lifetime Warranty: Complete Purchase Protection
uService: Replaceable Lenses and Optics
ClearView: All the Light, Right Where You Need It
MoistureBlock: Waterproof, rainproof, and submersible
CopperDrive: The only LED driven at 100% capacity
5000K Daylight: Reduces driver fatigue with natural color lighting
The Baja Designs XL-R Pro is engineered to provide reliable, high-performance lighting for off-road adventures, ensuring you can see and be seen, no matter the terrain.
SKU: 537803
Dimensions
Weight (lbs.) | 2.45 |
Length (in.) | 5.24 |
Height (in.) | 5.24 |
Depth (in.) | 3.65 |
Specifications
Product Type | XL-R Pro LED Light Pod Pair w/ Wiring Harness |
Overvoltage Protection | Built-In |
Mounting Hardware Material | Stainless Steel |
Lighting Type | Forward Projecting |
Lighting Technology | Cree XP-L LED |
Lighting Quantity | 4 |
Lighting Modes | High Beam/Dimming Feature (20%) |
Light Quantity | 2 |
Lens Material | Hardcoated Polycarbonate |
Lens Color | Clear |
Housing Material | Hard Anodized and Powder Coated Cast Aluminum |
Mounting Hardware Included | Yes |
Wiring Harness Included | Yes |
Wattage (W) | 40 |
Universal or Specific | Universal |
Housing Color | Black |
Description | Round; Driving/Combo; Clear; Pair |
Brightness (Lumens) | 4,900 |
Bezel Material | Powder Coated Cast Aluminum |
Beam Pattern | Driving/Combo |
Average Rated Life (hr.) | 49,930 |
Amperage Rating (A) | 2.9 |
Standards & Compliance
Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
SKU: 537815
Specifications
Light Quantity | 2 |
Lens Material | Hardcoated Polycarbonate |
Lens Color | Amber |
Housing Material | Hard Anodized and Powder Coated Cast Aluminum |
Housing Color | Black |
Description | Round; Wide Cornering; Amber; Pair |
Brightness (Lumens) | 4,900 |
Bezel Material | Powder Coated Cast Aluminum |
Product Type | XL-R Pro LED Light Pod Pair w/ Wiring Harness |
Overvoltage Protection | Built-In |
Mounting Hardware Material | Stainless Steel |
Mounting Hardware Included | Yes |
Lighting Type | Forward Projecting |
Lighting Technology | Cree XP-L LED |
Lighting Quantity | 4 |
Lighting Modes | High Beam/Dimming Feature (20%) |
Beam Pattern | Wide Cornering |
Wiring Harness Included | Yes |
Wattage (W) | 40 |
Universal or Specific | Universal |
Amperage Rating (A) | 2.9 |
Average Rated Life (hr.) | 49,930 |
Standards & Compliance
Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
Dimensions
Weight (lbs.) | 2.45 |
Length (in.) | 5.24 |
Height (in.) | 5.24 |
Depth (in.) | 3.65 |
SKU: 537805
Specifications
Average Rated Life (hr.) | 49,930 |
Amperage Rating (A) | 2.9 |
Beam Pattern | Wide Cornering |
Bezel Material | Powder Coated Cast Aluminum |
Brightness (Lumens) | 4,900 |
Product Type | XL-R Pro LED Light Pod Pair w/ Wiring Harness |
Overvoltage Protection | Built-In |
Mounting Hardware Material | Stainless Steel |
Mounting Hardware Included | Yes |
Lighting Type | Forward Projecting |
Lighting Technology | Cree XP-L LED |
Lighting Quantity | 4 |
Lighting Modes | High Beam/Dimming Feature (20%) |
Light Quantity | 2 |
Lens Material | Hardcoated Polycarbonate |
Lens Color | Clear |
Housing Material | Hard Anodized and Powder Coated Cast Aluminum |
Housing Color | Black |
Description | Round; Wide Cornering; Clear; Pair |
Wiring Harness Included | Yes |
Wattage (W) | 40 |
Universal or Specific | Universal |
Dimensions
Weight (lbs.) | 2.45 |
Length (in.) | 5.24 |
Height (in.) | 5.24 |
Depth (in.) | 3.65 |
Standards & Compliance
Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
SKU: 537801
Specifications
Product Type | XL-R Pro LED Light Pod Pair w/ Wiring Harness |
Overvoltage Protection | Built-In |
Mounting Hardware Material | Stainless Steel |
Mounting Hardware Included | Yes |
Lighting Type | Forward Projecting |
Lighting Technology | Cree XP-L LED |
Lighting Quantity | 4 |
Lighting Modes | High Beam/Dimming Feature (20%) |
Light Quantity | 2 |
Lens Material | Hardcoated Polycarbonate |
Universal or Specific | Universal |
Wattage (W) | 40 |
Wiring Harness Included | Yes |
Lens Color | Clear |
Housing Material | Hard Anodized and Powder Coated Cast Aluminum |
Description | Round; Spot; Clear; Pair |
Brightness (Lumens) | 4,900 |
Bezel Material | Powder Coated Cast Aluminum |
Beam Pattern | Spot |
Average Rated Life (hr.) | 49,930 |
Amperage Rating (A) | 2.9 |
Housing Color | Black |
Standards & Compliance
Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
Dimensions
Weight (lbs.) | 2.45 |
Length (in.) | 5.24 |
Height (in.) | 5.24 |
Depth (in.) | 3.65 |
SKU: 537813
Specifications
Product Type | XL-R Pro LED Light Pod Pair w/ Wiring Harness |
Overvoltage Protection | Built-In |
Mounting Hardware Material | Stainless Steel |
Mounting Hardware Included | Yes |
Lighting Type | Forward Projecting |
Lighting Technology | Cree XP-L LED |
Lighting Quantity | 4 |
Lighting Modes | High Beam/Dimming Feature (20%) |
Light Quantity | 2 |
Lens Material | Hardcoated Polycarbonate |
Lens Color | Amber |
Housing Material | Hard Anodized and Powder Coated Cast Aluminum |
Housing Color | Black |
Description | Round; Driving/Combo; Amber; Pair |
Brightness (Lumens) | 4,900 |
Bezel Material | Powder Coated Cast Aluminum |
Standards & Compliance
Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
Dimensions
Weight (lbs.) | 2.45 |
Length (in.) | 5.24 |
Height (in.) | 5.24 |
Depth (in.) | 3.65 |
SKU:
Specifications
Beam Pattern | Driving/Combo |
Wiring Harness Included | Yes |
Wattage (W) | 40 |
Universal or Specific | Universal |
Average Rated Life (hr.) | 49,930 |
Amperage Rating (A) | 2.9 |
