Textron/Arctic Cat Squadron Pro Headlight Kit - Arctic Cat 2020-21 Wildcat XX; Textron 2018-19 Wildcat XX
DESCRIPTION
Bring your headlight performance up to par with your Textron’s performance with the Baja Designs Textron, Wildcat XX “Pro” Headlight Kit. This kit utilizes four Squadron Pros. The Squadron Pro is the go-to choice when you want to annihilate the night and blast away the darkness. Each compact LED light boasts an impressive 4,600 lumens at 40 watts, to throw out brilliant illumination that’s easy on your battery. The secret to Squadron Pro’s brightness is Cree LEDs, which provide 20% more reach than standard LEDs with the same power consumption.

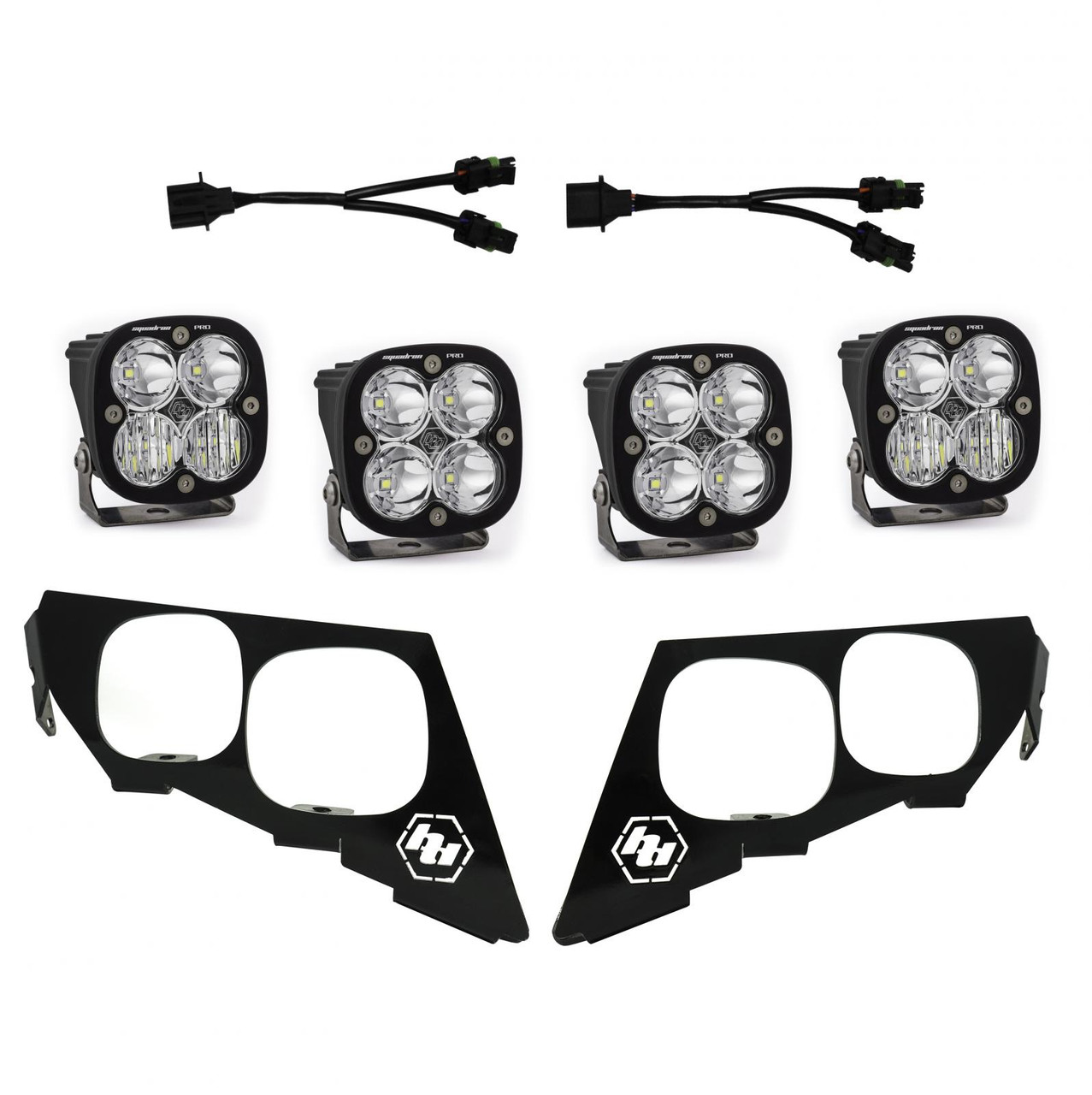

The need for front bumper lighting or roof mounted light bars are a thing of the past. This plug-and-play mounting kit includes two vehicle-specific mounting brackets and a wiring harness, so you can use your factory switch and mounting hardware.
- Satisfaction Guarantee – 30-Day Money Back Guarantee
- Limited Lifetime Warranty – Complete Purchase Protection
- uService – Replaceable Lenses And Optics
- ClearView – All The Light, Right Where You Need It
- MoistureBlock – Waterproof, Rain Proof, Submersible
- CopperDrive – Only LED Driven At 100 Percent
- 5000K Daylight – Less Driver Fatigue, Natural Colo
FITS
SKU: 490001
Dimensions
| Depth (in.) | 2.770 |
| Height (in.) | 3.070 |
| Length (in.) | 3.070 |
| Weight (lbs.) | 0.750 |
Specifications
| Amperage Rating (A) | 3 |
| Average Rated Life (hr.) | 49,930 |
| Beam Pattern | Spot |
| Bezel Material | Billet Machined Aluminum |
| Brightness (Lumens) | 4095 |
| Description | Spot; Clear |
| Housing Color | Black |
| Housing Material | Hard Anodized and Powder Coated Cast Aluminum |
| Lens Color | Clear |
| Lighting Modes | Hardcoated Polycarbonate |
| Light Quantity | 1 |
| Lens Material | Beam |
| Lighting Quantity | 4 |
| Lighting Type | Cree LED (2 Types) |
| Lighting Technology | Forward Projecting |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | Stainless Steel |
| Overvoltage Protection | Built-In |
| Product Type | Squadron Pro LED Light Pod |
| Wattage (W) | 41.400 |
| Wiring Harness Included | No |
Standards & Compliance
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Water Resistance) | IK10 Compliant (Mechanical Impact Testing) |
| Standards/Compliance (Impact Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
SKU: 490003
Dimensions
| Depth (in.) | 2.770 |
| Height (in.) | 3.070 |
| Length (in.) | 3.070 |
| Weight (lbs.) | 0.750 |
Specifications
| Amperage Rating (A) | 3 |
| Average Rated Life (hr.) | 49,930 |
| Beam Pattern | Driving/Combo |
| Bezel Material | Billet Machined Aluminum |
| Brightness (Lumens) | 4095 |
| Description | Driving/Combo; Clear |
| Housing Color | Black |
| Housing Material | Hard Anodized and Powder Coated Cast Aluminum |
| Lens Color | Clear |
| Lighting Modes | Hardcoated Polycarbonate |
| Light Quantity | 1 |
| Lens Material | Beam |
| Lighting Quantity | 4 |
| Lighting Type | Cree LED (2 Types) |
| Lighting Technology | Forward Projecting |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | Stainless Steel |
| Overvoltage Protection | Built-In |
| Product Type | Squadron Pro LED Light Pod |
| Wattage (W) | 41.400 |
| Wiring Harness Included | No |
Standards & Compliance
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Water Resistance) | IK10 Compliant (Mechanical Impact Testing) |
| Standards/Compliance (Impact Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
