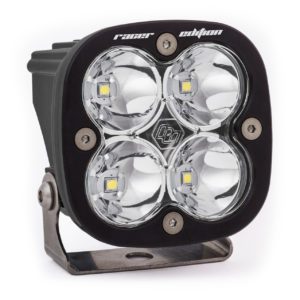

Squadron Racer Edition LED Auxiliary Light Pod - Universal
NOTE: This light does not come with a wiring harness. The applicable wiring harness for this light is 640117.
Description
The Baja Designs Squadron Racer Edition LED lights are meant for high-speed night driving where reaction time is paramount. Don’t let the compact size of these lights fool you, with our next generation LEDs offering 2,800 raw lumens at only 45.5W while making the Squadron Racer more efficient giving 81% greater distance over our prior generation model. The tight beam of the Squadron Racer is for those that drive near triple digits speeds, or need to see thousands of feet down the road illuminating Lighting Zone 5. Producing an even tighter beam pattern than our traditional spot offerings, the Squadron Racer Edition lights are recommended to be added to a well-balanced lighting package to avoid separation of spotlights due to the tight pattern. The sleek, black gloss aluminum housing offers enthusiasts the durability needed when traveling at higher speeds. Backed by our 30-Day Satisfaction Guarantee and Lifetime Limited Warranty for the ultimate in purchase protection. NOTE: This light does not come with a wiring harness. The applicable wiring harness for this light is 640117.
ELS™ Scores:
Click to learn more about our Effective Lighting Score (ELS)
Squadron Racer Edition Spot Clear: ELS 84⁰/ 5.2/ 374'/ 1765
Satisfaction Guarantee – 30-Day Money Back Guarantee
Limited Lifetime Warranty – Complete Purchase Protection
uService – Replaceable Lenses And Optics
ClearView – All The Light, Right Where You Need It
MoistureBlock – Waterproof, Rain Proof, Submersible
CopperDrive – Only LED Driven At 100 Percent
5000K Daylight – Less Driver Fatigue, Natural Color
SKU: 720001
Dimensions
Depth (in.) | 2.770 |
Height (in.) | 3.070 |
Length (in.) | 3.070 |
Weight (lbs.) | 0.750 |
Specifications
Amperage Rating (A) | 3.300 |
Average Rated Life (hr.) | 49,930 |
Beam Pattern | Racer Spot |
Bezel Material | Billet Machined Aluminum |
Brightness (Lumens) | 2800 |
Description | Racer Spot; Clear |
Housing Color | Black |
Housing Material | Hard Anodized and Powder Coated Cast Aluminum |
Lens Color | Clear |
Lens Material | Hardcoated Polycarbonate |
Light Quantity | 1 |
Lighting Modes | Beam |
Lighting Quantity | 4 |
Lighting Technology | High Intensity Cree LED |
Lighting Type | Forward Projecting |
Mounting Hardware Included | Yes |
Mounting Hardware Material | Stainless Steel |
Overvoltage Protection | Built-In |
Product Type | Squadron Racer Edition LED Light Pod |
Wattage (W) | 45.540 |
Wiring Harness Included | No |
Standards & Compliance
Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
SKU: 720011
Dimensions
Depth (in.) | 2.770 |
Height (in.) | 3.070 |
Length (in.) | 3.070 |
Weight (lbs.) | 0.750 |
Specifications
Amperage Rating (A) | 3.300 |
Average Rated Life (hr.) | 49,930 |
Beam Pattern | Racer Spot |
Bezel Material | Billet Machined Aluminum |
Brightness (Lumens) | 2800 |
Description | Racer Spot; Amber |
Housing Color | Black |
Housing Material | Hard Anodized and Powder Coated Cast Aluminum |
Lens Color | Amber |
Lens Material | Hardcoated Polycarbonate |
Light Quantity | 1 |
Lighting Modes | Beam |
Lighting Quantity | 4 |
Lighting Technology | High Intensity Cree LED |
Lighting Type | Forward Projecting |
Mounting Hardware Included | Yes |
Mounting Hardware Material | Stainless Steel |
Overvoltage Protection | Built-In |
Product Type | Squadron Racer Edition LED Light Pod |
Wattage (W) | 45.540 |
Wiring Harness Included | No |
Standards & Compliance
Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
