DESCRIPTION

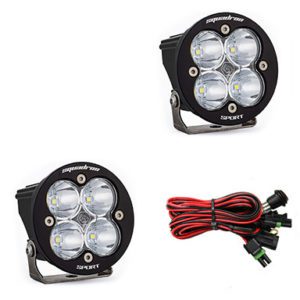

The Squadron-R Sport LED light pair from Baja Designs packs a punch without impacting your wallet. Don’t let the compact size of these 3” light pods fool you as they will fit almost anywhere you need auxiliary lighting on your truck, Jeep, SUV, UTV, and any other vehicle that needs lights. While compact in size the Squadron-R Sport is equipped with a sleek black gloss aluminum housing with our 3.5” round bezel that outshines the competition through both appearance and performance using next-generation LEDs pushing out 3,162 lumens. Our 30-Day Satisfaction Guarantee and Limited Lifetime Warranty are included for the ultimate in purchase protection. USPTO Reg No. 5,766,659
- Satisfaction Guarantee – 30-Day Money Back Guarantee
- Limited Lifetime Warranty – Complete Purchase Protection
- uService – Replaceable Lenses And Optics
- ClearView – All The Light, Right Where You Need It
- MoistureBlock – Waterproof, Rain Proof, Submersible
- CopperDrive – Only LED Driven At 100 Percent
- 5000K Daylight – Less Driver Fatigue, Natural Color
SKU: 587801
Dimensions
Depth (in.) | 2.77 |
Height (in.) | 3.5 |
Length (in.) | 3.5 |
Weight (lbs.) | 0.75 |
Specifications
Amperage Rating (A) | 2 |
Average Rated Life (hr.) | 49,930 |
Beam Pattern | Spot |
Bezel Material | Billet Machined Aluminum |
Brightness (Lumens) | 3,150 |
Description | Round; Spot; Clear; Pair |
Housing Color | Black |
Housing Material | Powder Coated Cast Aluminum |
Lens Color | Clear |
Lighting Modes | Hardcoated Polycarbonate |
Light Quantity | 2 |
Lens Material | Beam |
Lighting Quantity | 4 |
Lighting Type | LED |
Lighting Technology | Forward Projecting |
Mounting Hardware Included | Yes |
Mounting Hardware Material | Stainless Steel |
Overvoltage Protection | Built-In |
Product Type | Squadron-R Sport LED Light Pod Pair w/ Wiring Harness |
Wattage (W) | 26 |
Wiring Harness Included | Yes |
Standards & Compliance
Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
Standards/Compliance (Water Resistance) | IK10 Compliant (Mechanical Impact Testing) |
Standards/Compliance (Impact Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
SKU: 587803
Dimensions
Depth (in.) | 2.77 |
Height (in.) | 3.5 |
Length (in.) | 3.5 |
Weight (lbs.) | 0.75 |
Specifications
Amperage Rating (A) | 2 |
Average Rated Life (hr.) | 49,930 |
Beam Pattern | Driving/Combo |
Bezel Material | Billet Machined Aluminum |
Brightness (Lumens) | 3,150 |
Description | Round; Driving/Combo; Clear; Pair |
Housing Color | Black |
Housing Material | Powder Coated Cast Aluminum |
Lens Color | Clear |
Lighting Modes | Hardcoated Polycarbonate |
Light Quantity | 2 |
Lens Material | Beam |
Lighting Quantity | 4 |
Lighting Type | LED |
Lighting Technology | Forward Projecting |
Mounting Hardware Included | Yes |
Mounting Hardware Material | Stainless Steel |
Overvoltage Protection | Built-In |
Product Type | Squadron-R Sport LED Light Pod Pair w/ Wiring Harness |
Wattage (W) | 26 |
Wiring Harness Included | Yes |
Standards & Compliance
Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
Standards/Compliance (Water Resistance) | IK10 Compliant (Mechanical Impact Testing) |
Standards/Compliance (Impact Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
SKU: 587805
Dimensions
Depth (in.) | 2.77 |
Height (in.) | 3.5 |
Length (in.) | 3.5 |
Weight (lbs.) | 0.75 |
Specifications
Amperage Rating (A) | 2 |
Average Rated Life (hr.) | 49,930 |
Beam Pattern | Wide Cornering |
Bezel Material | Billet Machined Aluminum |
Brightness (Lumens) | 3,150 |
Description | Round; Wide Cornering; Clear; Pair |
Housing Color | Black |
Housing Material | Powder Coated Cast Aluminum |
Lens Color | Clear |
Lighting Modes | Hardcoated Polycarbonate |
Light Quantity | 2 |
Lens Material | Beam |
Lighting Quantity | 4 |
Lighting Type | LED |
Lighting Technology | Forward Projecting |
Mounting Hardware Included | Yes |
Mounting Hardware Material | Stainless Steel |
Overvoltage Protection | Built-In |
Product Type | Squadron-R Sport LED Light Pod Pair w/ Wiring Harness |
Wattage (W) | 26 |
Wiring Harness Included | Yes |
Standards & Compliance
Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
Standards/Compliance (Water Resistance) | IK10 Compliant (Mechanical Impact Testing) |
Standards/Compliance (Impact Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
SKU: 587806
Dimensions
Depth (in.) | 2.77 |
Height (in.) | 3.5 |
Length (in.) | 3.5 |
Weight (lbs.) | 0.75 |
Specifications
Amperage Rating (A) | 2 |
Average Rated Life (hr.) | 49,930 |
Beam Pattern | Work/Scene |
Bezel Material | Billet Machined Aluminum |
Brightness (Lumens) | 3,150 |
Description | Round; Work/Scene; Clear; Pair |
Housing Color | Black |
Housing Material | Powder Coated Cast Aluminum |
Lens Color | Clear |
Lighting Modes | Hardcoated Polycarbonate |
Light Quantity | 2 |
Lens Material | Beam |
Lighting Quantity | 4 |
Lighting Type | LED |
Lighting Technology | Forward Projecting |
Mounting Hardware Included | Yes |
Mounting Hardware Material | Stainless Steel |
Overvoltage Protection | Built-In |
Product Type | Squadron-R Sport LED Light Pod Pair w/ Wiring Harness |
Wattage (W) | 26 |
Wiring Harness Included | Yes |
Standards & Compliance
Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
Standards/Compliance (Water Resistance) | IK10 Compliant (Mechanical Impact Testing) |
Standards/Compliance (Impact Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
SKU: 587813
Dimensions
Depth (in.) | 2.77 |
Height (in.) | 3.5 |
Length (in.) | 3.5 |
Weight (lbs.) | 0.75 |
Specifications
Amperage Rating (A) | 2 |
Average Rated Life (hr.) | 49,930 |
Beam Pattern | Driving/Combo |
Bezel Material | Billet Machined Aluminum |
Brightness (Lumens) | 3,150 |
Description | Round; Driving/Combo; Amber; Pair |
Housing Color | Black |
Housing Material | Powder Coated Cast Aluminum |
Lens Color | Amber |
Lighting Modes | Hardcoated Polycarbonate |
Light Quantity | 2 |
Lens Material | Beam |
Lighting Quantity | 4 |
Lighting Type | LED |
Lighting Technology | Forward Projecting |
Mounting Hardware Included | Yes |
Mounting Hardware Material | Stainless Steel |
Overvoltage Protection | Built-In |
Product Type | Squadron-R Sport LED Light Pod Pair w/ Wiring Harness |
Wattage (W) | 26 |
Wiring Harness Included | Yes |
Standards & Compliance
Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
Standards/Compliance (Water Resistance) | IK10 Compliant (Mechanical Impact Testing) |
Standards/Compliance (Impact Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
SKU: 587815
Dimensions
Depth (in.) | 2.77 |
Height (in.) | 3.5 |
Length (in.) | 3.5 |
Weight (lbs.) | 0.75 |
Specifications
Amperage Rating (A) | 2 |
Average Rated Life (hr.) | 49,930 |
Beam Pattern | Wide Cornering |
Bezel Material | Billet Machined Aluminum |
Brightness (Lumens) | 3,150 |
Description | Round; Wide Cornering; Amber; Pair |
Housing Color | Black |
Housing Material | Powder Coated Cast Aluminum |
Lens Color | Amber |
Lighting Modes | Hardcoated Polycarbonate |
Light Quantity | 2 |
Lens Material | Beam |
Lighting Quantity | 4 |
Lighting Type | LED |
Lighting Technology | Forward Projecting |
Mounting Hardware Included | Yes |
Mounting Hardware Material | Stainless Steel |
Overvoltage Protection | Built-In |
Product Type | Squadron-R Sport LED Light Pod Pair w/ Wiring Harness |
Wattage (W) | 26 |
Wiring Harness Included | Yes |
Standards & Compliance
Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
Standards/Compliance (Water Resistance) | IK10 Compliant (Mechanical Impact Testing) |
Standards/Compliance (Impact Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
