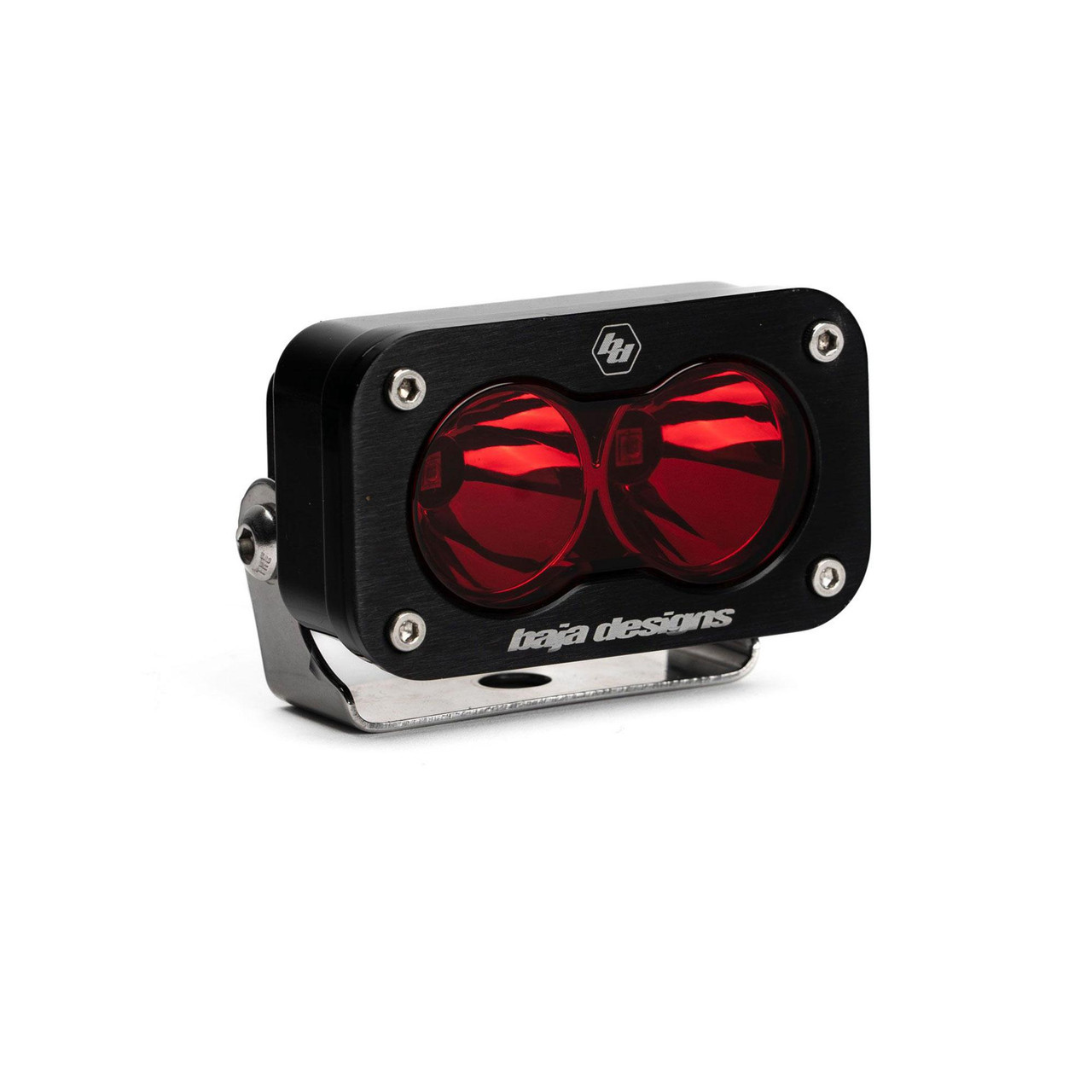

S2 Red LED Auxiliary Light Pod - Universal
NOTE: This light does not come with a wiring harness. The applicable wiring harness for this light is 640139.
OR

Description
The S2 Red builds upon our popular S2 series now offering a light with red LEDs for the brightest red marker light on the market. Use the clear spot lens for that high-intensity red light, or opt for the red lens for a deeper red color. For those who are looking for a low visibility scene light, we also offer the S2 Red with a clear work/scene lens for those applications where low light visibility is preferred. The new S2 red offers 150 lumens at only 0.88A, making this compact light powerful and quality second to none. Backed by our 30-day satisfaction guarantee and Lifetime Limited Warranty for the ultimate in purchase protection. NOTE: This light does not come with a wiring harness. The applicable wiring harness for this light is 640139.
Features
- New red LED offering true red color
- Choose between clear spot, red spot or clear work/scene lens for low light visibility
Kit Includes:
- (1x) S2 with new Red LEDs (Red Spot, Clear Spot, or Clear Work Scene Lens options)
- All necessary mounting hardware
S2 Red LED Specifications:
- Lumens: 150
- 11.79W / 0.88A
The Baja Designs Advantage
- uService – Replaceable Lenses and Optics
- ClearView – All the Light, Right Where You Need It
- MoistureBlock – Waterproof, Rain Proof, Submersible
- CopperDrive – Safely Driving LEDs at 100%
- 5000K Daylight – Less Driver Fatigue, Natural Color
- Satisfaction Guarantee – 30-Day Money Back Guarantee
- Limited Lifetime Warranty – Complete Purchase Protection
SKU: 54-0120
Dimensions
Depth (in.) | 1.68 |
Height (in.) | 1.76 |
Length (in.) | 2.93 |
Weight (lbs.) | 0.5 |
Specifications
Amperage Rating (A) | 0.88A |
Average Rated Life (hr.) | 49930 |
Beam Pattern | Spot |
Bezel Material | Powder Coat Cast Aluminum |
Brightness (Lumens) | 150 |
Description | Spot; Clear |
Housing Color | Black |
Housing Material | Powder Coated Cast Aluminum |
Lens Color | Clear |
Lens Material | Beam |
Light Quantity | 1 |
Lighting Modes | Hardcoated Polycarbonate |
Lighting Quantity | 2 |
Lighting Technology | Forward Projecting |
Lighting Type | LED |
Mounting Hardware Included | Yes |
Mounting Hardware Material | Stainless Steel |
Overvoltage Protection | Built-In |
Product Type | S2 Red LED Light Pod |
Wattage (W) | 11.79W |
Wiring Harness Included | No |
Standards & Compliance
Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
Standards/Compliance (Impact Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
Standards/Compliance (Water Resistance) | IK10 Compliant (Mechanical Impact Testing) |
SKU: 54-0120-RD
Dimensions
Depth (in.) | 1.68 |
Height (in.) | 1.76 |
Length (in.) | 2.93 |
Weight (lbs.) | 0.5 |
Specifications
Amperage Rating (A) | 0.88A |
Average Rated Life (hr.) | 49930 |
Beam Pattern | Spot |
Bezel Material | Powder Coat Cast Aluminum |
Brightness (Lumens) | 150 |
Description | Spot; Red |
Housing Color | Black |
Housing Material | Powder Coated Cast Aluminum |
Lens Color | Red |
Lens Material | Beam |
Light Quantity | 1 |
Lighting Modes | Hardcoated Polycarbonate |
Lighting Quantity | 2 |
Lighting Technology | Forward Projecting |
Lighting Type | LED |
Mounting Hardware Included | Yes |
Mounting Hardware Material | Stainless Steel |
Overvoltage Protection | Built-In |
Product Type | S2 Red LED Light Pod |
Wattage (W) | 11.79W |
Wiring Harness Included | No |
Standards & Compliance
Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
Standards/Compliance (Impact Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
Standards/Compliance (Water Resistance) | IK10 Compliant (Mechanical Impact Testing) |
SKU: 54-0620
Dimensions
Depth (in.) | 1.68 |
Height (in.) | 1.76 |
Length (in.) | 2.93 |
Weight (lbs.) | 0.5 |
Specifications
Amperage Rating (A) | 0.88A |
Average Rated Life (hr.) | 49930 |
Beam Pattern | Work/Scene |
Bezel Material | Powder Coat Cast Aluminum |
Brightness (Lumens) | 150 |
Description | Work/Scene; Clear |
Housing Color | Black |
Housing Material | Powder Coated Cast Aluminum |
Lens Color | Clear |
Lens Material | Beam |
Light Quantity | 1 |
Lighting Modes | Hardcoated Polycarbonate |
Lighting Quantity | 2 |
Lighting Technology | Forward Projecting |
Lighting Type | LED |
Mounting Hardware Included | Yes |
Mounting Hardware Material | Stainless Steel |
Overvoltage Protection | Built-In |
Product Type | S2 Red LED Light Pod |
Wattage (W) | 11.79W |
Wiring Harness Included | No |
Standards & Compliance
Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
Standards/Compliance (Impact Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
Standards/Compliance (Water Resistance) | IK10 Compliant (Mechanical Impact Testing) |
