S2 Pro Black LED Auxiliary Light Pod - Universal
SKU: 480011
starting at:
$180.95
NOTE: This light does not come with a wiring harness. The applicable wiring harness for this light is 640117.
PRODUCT OPTIONS
OR
Baja Designs California Proposition 65
WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov.
Description

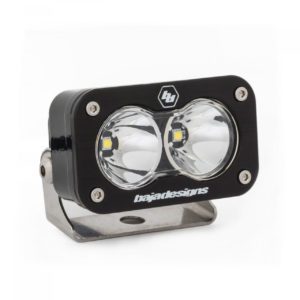

The S2 Pro LED Light offers an incredible 2,245 lumens out of a tiny 3 inch x 2 inch housing; the S2 Pro is quite literally the brightest LED light ounce for ounce on the market. The S2 Pro can be mounted where traditional lights would never fit. Moreover, it only draws 24 watts so your electrical system will barely know it’s there. This LED is perfect for all your adventures! An industry-first 30 Day Satisfaction Guarantee and Limited Lifetime Warranty is included for the ultimate in-purchase protection.
Satisfaction Guarantee – 30-Day Money Back Guarantee
Limited Lifetime Warranty – Complete Purchase Protection
uService – Replaceable Lenses And Optics
ClearView – All The Light, Right Where You Need It
MoistureBlock – Waterproof, Rain Proof, Submersible
CopperDrive – Only LED Driven At 100 Percent
5000K Daylight – Less Driver Fatigue, Natural Color
Detailed Specs
SKU: 480001
Specifications
| Lens Color | Clear |
| Lens Material | Hardcoated Polycarbonate |
| Light Quantity | 1 |
| Lighting Modes | Beam |
| Lighting Quantity | 2 |
| Lighting Technology | LED |
| Lighting Type | Forward Projecting |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | Stainless Steel |
| Overvoltage Protection | Built-In |
| Product Type | S2 Pro LED Light Pod |
| Wattage (W) | 23.460 |
| Wiring Harness Included | No |
| Amperage Rating (A) | 1.700 |
| Average Rated Life (hr.) | 49,930 |
| Beam Pattern | Spot |
| Bezel Material | Powder Coated Cast Aluminum |
| Brightness (Lumens) | 2245 |
| Description | Spot; Clear |
| Housing Color | Black |
| Housing Material | Hard Anodized and Powder Coated Cast Aluminum |
Standards & Compliance
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
Dimensions
| Depth (in.) | 1.680 |
| Height (in.) | 1.760 |
| Length (in.) | 2.930 |
| Weight (lbs.) | 0.500 |
SKU: 480003
Specifications
| Housing Material | Hard Anodized and Powder Coated Cast Aluminum |
| Lens Color | Clear |
| Lens Material | Hardcoated Polycarbonate |
| Light Quantity | 1 |
| Lighting Modes | Beam |
| Lighting Quantity | 2 |
| Lighting Technology | LED |
| Lighting Type | Forward Projecting |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | Stainless Steel |
| Overvoltage Protection | Built-In |
| Product Type | S2 Pro LED Light Pod |
| Wattage (W) | 23.460 |
| Wiring Harness Included | No |
| Amperage Rating (A) | 1.700 |
| Average Rated Life (hr.) | 49,930 |
| Beam Pattern | Driving/Combo |
| Bezel Material | Powder Coated Cast Aluminum |
| Brightness (Lumens) | 2245 |
| Description | Driving/Combo; Clear |
| Housing Color | Black |
Standards & Compliance
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
Dimensions
| Depth (in.) | 1.680 |
| Height (in.) | 1.760 |
| Length (in.) | 2.930 |
| Weight (lbs.) | 0.500 |
SKU: 480005
Specifications
| Housing Material | Hard Anodized and Powder Coated Cast Aluminum |
| Lens Color | Clear |
| Lens Material | Hardcoated Polycarbonate |
| Light Quantity | 1 |
| Lighting Modes | Beam |
| Lighting Quantity | 2 |
| Lighting Technology | LED |
| Lighting Type | Forward Projecting |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | Stainless Steel |
| Overvoltage Protection | Built-In |
| Product Type | S2 Pro LED Light Pod |
| Wattage (W) | 23.460 |
| Wiring Harness Included | No |
| Amperage Rating (A) | 1.700 |
| Average Rated Life (hr.) | 49,930 |
| Beam Pattern | Wide Cornering |
| Bezel Material | Powder Coated Cast Aluminum |
| Brightness (Lumens) | 2245 |
| Description | Wide Cornering; Clear |
| Housing Color | Black |
Standards & Compliance
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
Dimensions
| Depth (in.) | 1.680 |
| Height (in.) | 1.760 |
| Length (in.) | 2.930 |
| Weight (lbs.) | 0.500 |
SKU: 480011
Specifications
| Lens Color | Amber |
| Lens Material | Hardcoated Polycarbonate |
| Light Quantity | 1 |
| Lighting Modes | Beam |
| Lighting Quantity | 2 |
| Lighting Technology | LED |
| Lighting Type | Forward Projecting |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | Stainless Steel |
| Overvoltage Protection | Built-In |
| Product Type | S2 Pro LED Light Pod |
| Wattage (W) | 23.460 |
| Wiring Harness Included | No |
| Amperage Rating (A) | 1.700 |
| Average Rated Life (hr.) | 49,930 |
| Beam Pattern | Spot |
| Bezel Material | Powder Coated Cast Aluminum |
| Brightness (Lumens) | 2245 |
| Description | Spot; Amber |
| Housing Color | Black |
| Housing Material | Hard Anodized and Powder Coated Cast Aluminum |
Standards & Compliance
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
Dimensions
| Depth (in.) | 1.680 |
| Height (in.) | 1.760 |
| Length (in.) | 2.930 |
| Weight (lbs.) | 0.500 |
SKU: 480013
Specifications
| Housing Material | Hard Anodized and Powder Coated Cast Aluminum |
| Lens Color | Amber |
| Lens Material | Hardcoated Polycarbonate |
| Light Quantity | 1 |
| Lighting Modes | Beam |
| Lighting Quantity | 2 |
| Lighting Technology | LED |
| Lighting Type | Forward Projecting |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | Stainless Steel |
| Overvoltage Protection | Built-In |
| Product Type | S2 Pro LED Light Pod |
| Wattage (W) | 23.460 |
| Wiring Harness Included | No |
| Amperage Rating (A) | 1.700 |
| Average Rated Life (hr.) | 49,930 |
| Beam Pattern | Driving/Combo |
| Bezel Material | Powder Coated Cast Aluminum |
| Brightness (Lumens) | 2245 |
| Description | Driving/Combo; Amber |
| Housing Color | Black |
Standards & Compliance
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
Dimensions
| Depth (in.) | 1.680 |
| Height (in.) | 1.760 |
| Length (in.) | 2.930 |
| Weight (lbs.) | 0.500 |
SKU: 480015
Specifications
| Housing Material | Hard Anodized and Powder Coated Cast Aluminum |
| Lens Color | Amber |
| Lens Material | Hardcoated Polycarbonate |
| Light Quantity | 1 |
| Lighting Modes | Beam |
| Lighting Quantity | 2 |
| Lighting Technology | LED |
| Lighting Type | Forward Projecting |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | Stainless Steel |
| Overvoltage Protection | Built-In |
| Product Type | S2 Pro LED Light Pod |
| Wattage (W) | 23.460 |
| Wiring Harness Included | No |
| Amperage Rating (A) | 1.700 |
| Average Rated Life (hr.) | 49,930 |
| Beam Pattern | Wide Cornering |
| Bezel Material | Powder Coated Cast Aluminum |
| Brightness (Lumens) | 2245 |
| Description | Wide Cornering; Amber |
| Housing Color | Black |
Standards & Compliance
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
Dimensions
| Depth (in.) | 1.680 |
| Height (in.) | 1.760 |
| Length (in.) | 2.930 |
| Weight (lbs.) | 0.500 |
SKU: 480006
Dimensions
| Depth (in.) | 1.680 |
| Height (in.) | 1.760 |
| Length (in.) | 2.930 |
| Weight (lbs.) | 0.500 |
Specifications
| Amperage Rating (A) | 1.700 |
| Average Rated Life (hr.) | 49,930 |
| Beam Pattern | Work/Scene |
| Bezel Material | Powder Coated Cast Aluminum |
| Brightness (Lumens) | 2245 |
| Description | Work/Scene; Clear |
| Housing Color | Black |
| Housing Material | Hard Anodized and Powder Coated Cast Aluminum |
| Lens Color | Clear |
| Lens Material | Hardcoated Polycarbonate |
| Light Quantity | 1 |
| Lighting Modes | Beam |
| Lighting Quantity | 2 |
| Lighting Technology | LED |
| Lighting Type | Forward Projecting |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | Stainless Steel |
| Overvoltage Protection | Built-In |
| Product Type | S2 Pro LED Light Pod |
| Wattage (W) | 23.460 |
| Wiring Harness Included | No |
Standards & Compliance
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
SKU: 480016
Dimensions
| Depth (in.) | 1.680 |
| Height (in.) | 1.760 |
| Length (in.) | 2.930 |
| Weight (lbs.) | 0.500 |
Specifications
| Amperage Rating (A) | 1.700 |
| Average Rated Life (hr.) | 49,930 |
| Beam Pattern | Work/Scene |
| Bezel Material | Powder Coated Cast Aluminum |
| Brightness (Lumens) | 2245 |
| Description | Work/Scene; Amber |
| Housing Color | Black |
| Housing Material | Hard Anodized and Powder Coated Cast Aluminum |
| Lens Color | Amber |
| Lens Material | Hardcoated Polycarbonate |
| Light Quantity | 1 |
| Lighting Modes | Beam |
| Lighting Quantity | 2 |
| Lighting Technology | LED |
| Lighting Type | Forward Projecting |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | Stainless Steel |
| Overvoltage Protection | Built-In |
| Product Type | S2 Pro LED Light Pod |
| Wattage (W) | 23.460 |
| Wiring Harness Included | No |
Standards & Compliance
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
