Motorcycle Squadron Pro (D/C) Headlight Kit w/ Shell

SKU: 4970014R
$302.95

Shell Color
Light Pattern
Color
Please choose a color.
Color*
Clear
All LED products are experiencing 8 week average lead times due to supply chain hurdles. We are shipping orders as quickly as possible.
Add to Cart

Specifically designed for those riders who are looking for more than just your average headlight. The Squadron Pro Motorcycle Race Light is in a league of its own, producing 4,900 lumens and 40 watts giving you the perfect mix of power and performance. The Squadron Pro Race Light has been meticulously designed by our engineers to give our riders an extremely light weight (12 ounces) race light, while presenting a unique style and appearance that you will only find from Baja Designs. The Squadron Pro Race Light is plug and play making for an easy install. An industry first 30 Day Satisfaction Guarantee and Limited Lifetime Warranty is included for the ultimate in purchase protection.

Satisfaction Guarantee – 30-Day Money Back Guarantee

Limited Lifetime Warranty – Complete Purchase Protection

uService – Replaceable Lenses And Optics

ClearView – All The Light, Right Where You Need It

MoistureBlock – Waterproof, Rain Proof, Submersible

CopperDrive – Only LED Driven At 100 Percent

5000K Daylight – Less Driver Fatigue, Natural Color

Electric start bikes that require a stator modification or rewind will have to the purchase a switch and wiring harness kit. Please refer to the “STATOR Reference Chart” found under the Tech Info header. For Electric-Start Bikes: Some electric-start bikes require the stator to be modified or rewound as well as the addition of a new rectifier/regulator to run LED lights. If your bike requires a new rectifier/regulator please order part (#12-2004) (please provide year/make/model of bike). Detailed stator modification instructions and hardware is included for all bikes that require a stator modification to run LED lights. If your bike requires the stator to be rewound, please call Baja Designs for an order confirmation number to have this service performed.

Note:
Electric start bikes that require a stator modification or rewind will have to the purchase a switch and wiring harness kit. Please refer to the “STATOR Reference Chart” found under the Tech Info header. For Electric-Start Bikes: Some

Detailed Specs

SKU: 4970014R

Specifications

Product Type Motorcycle Squadron Pro Red D/C Headlight Kit w/ Shell
Description Red Shell; Spot; D/C Wiring
Beam Pattern Spot
Lens Color Clear
Lighting Modes Beam
Light Quantity 1
Lighting Type Forward Projecting
Lighting Technology Cree LED
Lighting Quantity 4
Brightness (Lumens) 4,900
Wattage (W) 40
Amperage Rating (A) 2.9
Average Rated Life (hr.) 49,930
Housing Color Black
Housing Material Hard Anodized and Powder Coated Cast Aluminum
Lens Material Hardcoated Polycarbonate
Bezel Material Billet Machined Aluminum
Mounting Hardware Included Yes
Mounting Hardware Description Red Windscreen Shell
Mounting Hardware Material Stainless Steel
Wiring Harness Included Yes
Wiring Harness Description Plug and Play; A/C to D/C Converter
Overvoltage Protection Built-In
Switch Included Yes

Dimensions

Length (in.) 3.07
Height (in.) 3.07
Depth (in.) 2.77
Weight (lbs.) 1.8

Standards & Compliance

Standards/Compliance (Durability) Exceeds MIL-STD810G (Mil-Spec Testing)
Standards/Compliance (Water Resistance) IP69K (Waterproof up to 9ft & Pressure Washable)
Standards/Compliance (Impact Resistance) IK10 Compliant (Mechanical Impact Testing)

SKU: 497001BK

Specifications

Product Type Motorcycle Squadron Pro Black D/C Headlight Kit w/ Shell
Description Black Shell; Spot; D/C Wiring
Beam Pattern Spot
Lens Color Clear
Lighting Modes Beam
Light Quantity 1
Lighting Type Forward Projecting
Lighting Technology Cree LED
Lighting Quantity 4
Brightness (Lumens) 4,900
Wattage (W) 40
Amperage Rating (A) 2.9
Average Rated Life (hr.) 49,930
Housing Color Black
Housing Material Hard Anodized and Powder Coated Cast Aluminum
Lens Material Hardcoated Polycarbonate
Bezel Material Billet Machined Aluminum
Mounting Hardware Included Yes
Mounting Hardware Description Black Windscreen Shell
Mounting Hardware Material Stainless Steel
Wiring Harness Included Yes
Wiring Harness Description Plug and Play; A/C to D/C Converter
Overvoltage Protection Built-In
Switch Included Yes

Dimensions

Length (in.) 3.07
Height (in.) 3.07
Depth (in.) 2.77
Weight (lbs.) 1.8

Standards & Compliance

Standards/Compliance (Durability) Exceeds MIL-STD810G (Mil-Spec Testing)
Standards/Compliance (Water Resistance) IP69K (Waterproof up to 9ft & Pressure Washable)
Standards/Compliance (Impact Resistance) IK10 Compliant (Mechanical Impact Testing)

SKU: 497001BU

Specifications

Product Type Motorcycle Squadron Pro Blue D/C Headlight Kit w/ Shell
Description Blue Shell; Spot; D/C Wiring
Beam Pattern Spot
Lens Color Clear
Lighting Modes Beam
Light Quantity 1
Lighting Type Forward Projecting
Lighting Technology Cree LED
Lighting Quantity 4
Brightness (Lumens) 4,900
Wattage (W) 40
Amperage Rating (A) 2.9
Average Rated Life (hr.) 49,930
Housing Color Blue
Housing Material Hard Anodized and Powder Coated Cast Aluminum
Lens Material Hardcoated Polycarbonate
Bezel Material Billet Machined Aluminum
Mounting Hardware Included Yes
Mounting Hardware Description Red Windscreen Shell
Mounting Hardware Material Stainless Steel
Wiring Harness Included Yes
Wiring Harness Description Plug and Play; A/C to D/C Converter
Overvoltage Protection Built-In
Switch Included Yes

Dimensions

Length (in.) 3.07
Height (in.) 3.07
Depth (in.) 2.77
Weight (lbs.) 1.8

Standards & Compliance

Standards/Compliance (Durability) Exceeds MIL-STD810G (Mil-Spec Testing)
Standards/Compliance (Water Resistance) IP69K (Waterproof up to 9ft & Pressure Washable)
Standards/Compliance (Impact Resistance) IK10 Compliant (Mechanical Impact Testing)

SKU: 497001WT

Specifications

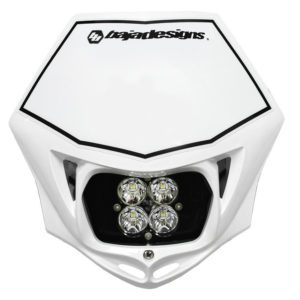

Product Type Motorcycle Squadron Pro White D/C Headlight Kit w/ Shell
Description White Shell; Spot; D/C Wiring
Beam Pattern Spot
Lens Color Clear
Lighting Modes Beam
Light Quantity 1
Lighting Type Forward Projecting
Lighting Technology Cree LED
Lighting Quantity 4
Brightness (Lumens) 4,900
Wattage (W) 40
Amperage Rating (A) 2.9
Average Rated Life (hr.) 49,930
Housing Color White
Housing Material Hard Anodized and Powder Coated Cast Aluminum
Lens Material Hardcoated Polycarbonate
Bezel Material Billet Machined Aluminum
Mounting Hardware Included Yes
Mounting Hardware Description Red Windscreen Shell
Mounting Hardware Material Stainless Steel
Wiring Harness Included Yes
Wiring Harness Description Plug and Play; A/C to D/C Converter
Overvoltage Protection Built-In
Switch Included Yes

Dimensions

Length (in.) 3.07
Height (in.) 3.07
Depth (in.) 2.77
Weight (lbs.) 1.8

Standards & Compliance

Standards/Compliance (Durability) Exceeds MIL-STD810G (Mil-Spec Testing)
Standards/Compliance (Water Resistance) IP69K (Waterproof up to 9ft & Pressure Washable)
Standards/Compliance (Impact Resistance) IK10 Compliant (Mechanical Impact Testing)
