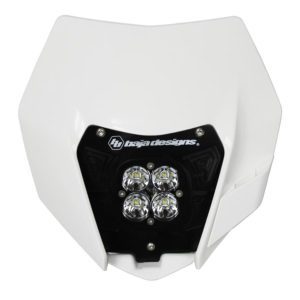

KTM Squadron Sport (D/C) Headlight Kit w/ '14-16 Shell - KTM 2014-16 250 SX-F/250 XC-F/250 XCF-W/350 SX-F/350 XC-F/350 XCF-W; 2013-16 450 XC-W/500 XC-W

SKU: 557091
starting at:
$219.95
All Baja Designs LED products (except RTL and SAE) are experiencing 4-6 week average lead times. We are shipping orders as quickly as possible.
SELECT YOUR VEHICLE*
PRODUCT OPTIONS

DESCRIPTION

If you are looking for an off road light that features unique styling and leading edge performance, than the Squadron Sport, LED KTM 2014-2016 w/Headlight Shell is the light for you. The Sport produces an impressive 3,150 lumens while only drawing 26 watts, allowing for a longer ride. An industry first 30 Day Satisfaction Guarantee and Limited Lifetime Warranty is included for the ultimate in purchase protection

Satisfaction Guarantee – 30-Day Money Back Guarantee

Limited Lifetime Warranty – Complete Purchase Protection

uService – Replaceable Lenses And Optics

ClearView – All The Light, Right Where You Need It

MoistureBlock – Waterproof, Rain Proof, Submersible

CopperDrive – Only LED Driven At 100 Percent

5000K Daylight – Less Driver Fatigue, Natural Color

Electric start bikes that require a stator modification or rewind will have to the purchase a switch and wiring harness kit. Please refer to the “STATOR Reference Chart” found under the Tech Info header. For Electric-Start Bikes: Some electric-start bikes require the stator to be modified or rewound as well as the addition of a new rectifier/regulator to run LED lights. If your bike requires a new rectifier/regulator please order part (#12-2004) (please provide year/make/model of bike). Detailed stator modification instructions and hardware is included for all bikes that require a stator modification to run LED lights. If your bike requires the stator to be rewound, please call Baja Designs for an order confirmation number to have this service performed.

Note:
Electric start bikes that require a stator modification or rewind will have to the purchase a switch and wiring harness kit. Please refer to the “STATOR Reference Chart” found under the Tech Info header. For Electric-Start Bikes: Some

FITS

2014-2016 KTM 250 SX-F
2016-2016 KTM 250 SX-F Factory Edition
2014-2016 KTM 250 XC-F
2014-2016 KTM 250 XCF-W
2014-2016 KTM 350 SX-F
2014-2016 KTM 350 XC-F
2014-2016 KTM 350 XCF-W
2016-2016 KTM 350 XCF-W Six Days
2013-2016 KTM 450 XC-W
2013-2016 KTM 500 XC-W
SEE ALL
Detailed Specs
Included with kit:

SKU: 550001

Dimensions

Depth (in.) 2.770
Height (in.) 3.070
Length (in.) 3.070
Weight (lbs.) 0.750

Specifications

Amperage Rating (A) 2.200
Average Rated Life (hr.) 49,930
Beam Pattern Spot
Bezel Material Billet Machined Aluminum
Brightness (Lumens) 3162
Description Spot; Clear
Housing Color Black
Housing Material Powder Coated Cast Aluminum
Lens Color Clear
Lighting Modes Hardcoated Polycarbonate
Light Quantity 1
Lens Material Beam
Lighting Quantity 4
Lighting Type LED
Lighting Technology Forward Projecting
Mounting Hardware Included Yes
Mounting Hardware Material Stainless Steel
Overvoltage Protection Built-In
Product Type Squadron Sport LED Light Pod
Wattage (W) 30.360
Wiring Harness Included No

Standards & Compliance

Standards/Compliance (Durability) Exceeds MIL-STD810G (Mil-Spec Testing)
Standards/Compliance (Water Resistance) IK10 Compliant (Mechanical Impact Testing)
Standards/Compliance (Impact Resistance) IP69K (Waterproof up to 9ft & Pressure Washable)
Installation Instructions
Disclaimer and Warning

Disclaimer

Buyer is responsible for ensuring that it uses the products (and its vehicle) in accordance with all applicable laws, regulations, guidelines, and standards of care. Buyer acknowledges that some products may only be used when off-roading, and Buyer will comply with all vehicle and road safety guidelines. Buyer is solely responsible for (and will indemnify and hold Bestop harmless for) any claims, losses, damages, fines, fees, costs, or other amounts arising out of Buyer’s non-compliance with these provisions.

Baja Designs California Proposition 65

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Baja Designs American Passion, Quality and Performance

Vehicle Lighting Zones
The needs of every off-roader are different, so we've created a Lighting Zone system to help you mix and match the right products, with the right lenses, in the right places to achieve the absolute best results.
Learn more about each zone's placement, power, and pattern.
Learn more
