KTM S1 Frame Mount Light Kit - KTM 2019-21 390/790/890 Adventure/R

SKU: 387001
starting at:
$393.95
All Baja Designs LED products (except RTL and SAE) are experiencing 4-6 week average lead times. We are shipping orders as quickly as possible.
SELECT YOUR VEHICLE*
PRODUCT OPTIONS

DESCRIPTION

Spice your KTM 790 up with a lighting kit from Baja Designs! Delivering unbeatable brilliance in a small package, the S1 has a trim body made from lightweight aluminum and a rugged polycarbonate lens, so regular bumps and bruises won’t lead to cracks or breaks.

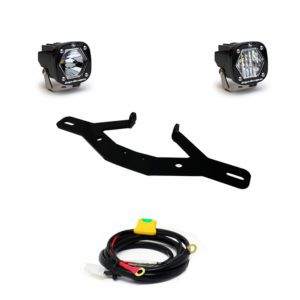

This kit includes everything you need such as wiring, lights, bracketry, and hardware. This kit utilizes our S1 series of light, and provides ample performance for any adventure you’re on. Installation is a breeze, and the fit is second to none!

  • Satisfaction Guarantee – 30-Day Money Back Guarantee
  • Limited Lifetime Warranty – Complete Purchase Protection
  • uService – Replaceable Lenses And Optics
  • ClearView – All The Light, Right Where You Need It
  • MoistureBlock – Waterproof, Rain Proof, Submersible
  • CopperDrive – Only LED Driven At 100 Percent
  • 5000K Daylight – Less Driver Fatigue, Natural Color
  • Learn more HERE.

FITS

2020-2021 KTM 390 Adventure
2019-2020 KTM 790 Adventure
2019-2020 KTM 790 Adventure R
2020-2020 KTM 790 Adventure R Rally
2021-2021 KTM 890 Adventure
2021-2021 KTM 890 Adventure R
SEE ALL
Detailed Specs
Included with kit:

SKU: 380001

Dimensions

Depth (in.) 2.100
Height (in.) 2.100
Length (in.) 2.100
Weight (lbs.) 0.400

Specifications

Amperage Rating (A) 1.420
Average Rated Life (hr.) 49,930
Beam Pattern Spot
Bezel Material Billet Machined Aluminum
Brightness (Lumens) 2320
Description Spot; Clear
Housing Color Black
Housing Material Hard Anodized and Powder Coated Cast Aluminum
Lens Color Clear
Lighting Modes Hardcoated Polycarbonate
Light Quantity 1
Lens Material Beam
Lighting Quantity 1
Lighting Type LED
Lighting Technology Forward Projecting
Mounting Hardware Included Yes
Mounting Hardware Material Stainless Steel
Overvoltage Protection Built-In
Product Type S1 LED Light Pod
Voltage 9-28
Wattage (W) 19.596
Wiring Harness Included No

Standards & Compliance

Standards/Compliance (Durability) Exceeds MIL-STD810G (Mil-Spec Testing)
Standards/Compliance (Water Resistance) IK10 Compliant (Mechanical Impact Testing)
Standards/Compliance (Impact Resistance) IP69K (Waterproof up to 9ft & Pressure Washable)

SKU: 380005

Dimensions

Depth (in.) 2.100
Height (in.) 2.100
Length (in.) 2.100
Weight (lbs.) 0.400

Specifications

Amperage Rating (A) 1.420
Average Rated Life (hr.) 49,930
Beam Pattern Wide Cornering
Bezel Material Billet Machined Aluminum
Brightness (Lumens) 2320
Description Wide Cornering; Clear
Housing Color Black
Housing Material Hard Anodized and Powder Coated Cast Aluminum
Lens Color Clear
Lighting Modes Hardcoated Polycarbonate
Light Quantity 1
Lens Material Beam
Lighting Quantity 1
Lighting Type LED
Lighting Technology Forward Projecting
Mounting Hardware Included Yes
Mounting Hardware Material Stainless Steel
Overvoltage Protection Built-In
Product Type S1 LED Light Pod
Voltage 9-28
Wattage (W) 19.596
Wiring Harness Included No

Standards & Compliance

Standards/Compliance (Durability) Exceeds MIL-STD810G (Mil-Spec Testing)
Standards/Compliance (Water Resistance) IK10 Compliant (Mechanical Impact Testing)
Standards/Compliance (Impact Resistance) IP69K (Waterproof up to 9ft & Pressure Washable)
Installation Instructions
Disclaimer and Warning

Disclaimer

Buyer is responsible for ensuring that it uses the products (and its vehicle) in accordance with all applicable laws, regulations, guidelines, and standards of care. Buyer acknowledges that some products may only be used when off-roading, and Buyer will comply with all vehicle and road safety guidelines. Buyer is solely responsible for (and will indemnify and hold Bestop harmless for) any claims, losses, damages, fines, fees, costs, or other amounts arising out of Buyer’s non-compliance with these provisions.

Baja Designs California Proposition 65

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Baja Designs American Passion, Quality and Performance

Vehicle Lighting Zones
The needs of every off-roader are different, so we've created a Lighting Zone system to help you mix and match the right products, with the right lenses, in the right places to achieve the absolute best results.
Learn more about each zone's placement, power, and pattern.
