Ford Squadron Pro Fog Pocket Light Kit - Ford 1999-10 F-250/350 Super Duty
Baja Designs California Proposition 65
Description
The Ford Super Duty (99-10) Fog Pocket Kit allows you to mount two Squadron Pro auxiliary lights in the factory location. The Squadron Pro is the go-to choice when you want to pierce through the night. Each compact LED light boasts an impressive 4,095 lumens at 41 watts, to throw out brilliant illumination that's easy on your battery. The secret to the Squadron Pro’s brightness is our Next Generation LEDs, which provide 64% more reach than our previous model.

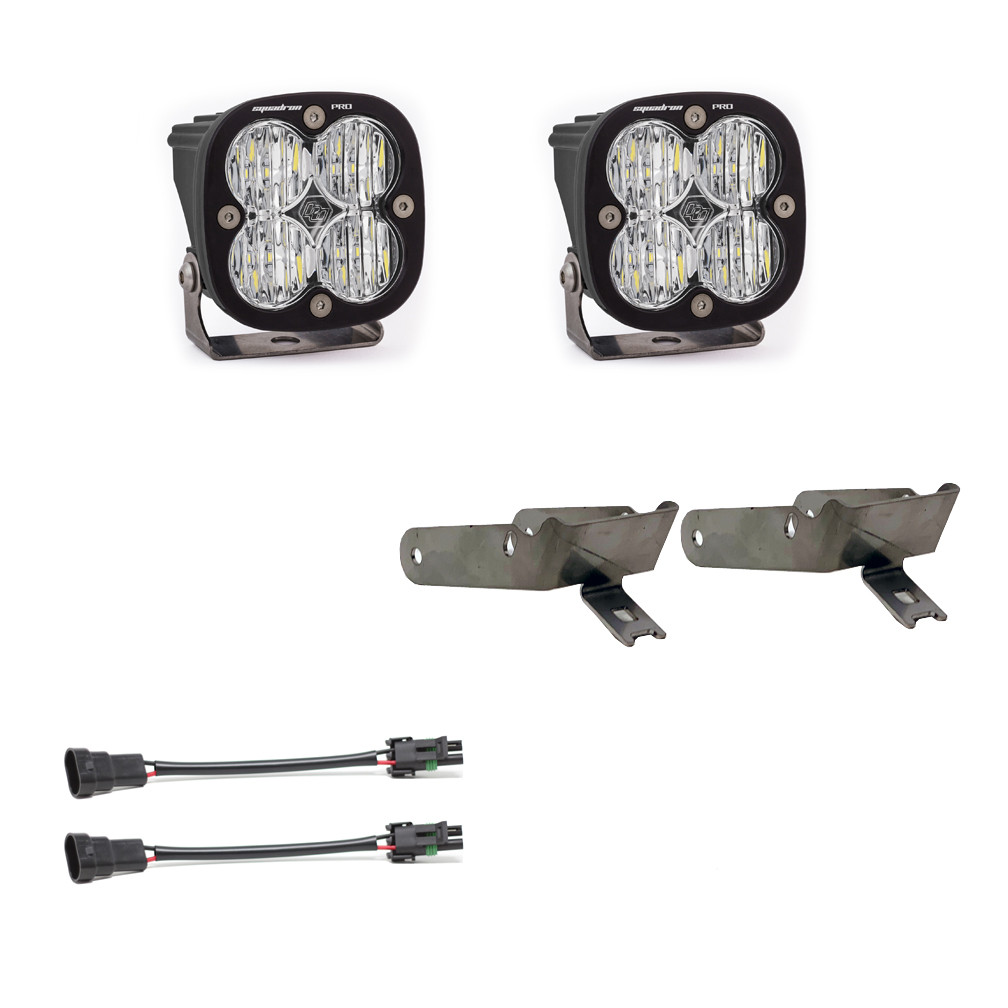

This plug-and-play kit includes two Squadron Pro Wide Cornering lights, two Ford-specific mounting brackets, and a wiring adapter, allowing you to use your factory switch and mounting hardware. The Wide Driving pattern offers a 42-degree flattened horizontal beam for the ultimate lighting. (Lighting Zones 1 & 2). USPTO Reg No. 5,766,659
Satisfaction Guarantee – 30-Day Money Back Guarantee
Limited Lifetime Warranty – Complete Purchase Protection
uService® – Replaceable Lenses And Optics
ClearView® – All The Light, Right Where You Need It
MoistureBlock® – Waterproof, Rain Proof, Submersible
CopperDrive® – Safely Driving LEDs at 100%
5000K Daylight – Less Driver Fatigue, Natural Color
FITS
SKU: 490005
Dimensions
| Depth (in.) | 2.770 |
| Height (in.) | 3.070 |
| Length (in.) | 3.070 |
| Weight (lbs.) | 0.750 |
Specifications
| Amperage Rating (A) | 3 |
| Average Rated Life (hr.) | 49,930 |
| Beam Pattern | Wide Cornering |
| Bezel Material | Billet Machined Aluminum |
| Brightness (Lumens) | 4095 |
| Description | Wide Cornering; Clear |
| Housing Color | Black |
| Housing Material | Hard Anodized and Powder Coated Cast Aluminum |
| Lens Color | Clear |
| Lens Material | Hardcoated Polycarbonate |
| Light Quantity | 1 |
| Lighting Modes | Beam |
| Lighting Quantity | 4 |
| Lighting Technology | Cree LED (2 Types) |
| Lighting Type | Forward Projecting |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | Stainless Steel |
| Overvoltage Protection | Built-In |
| Product Type | Squadron Pro LED Light Pod |
| Wattage (W) | 41.400 |
| Wiring Harness Included | No |
Standards & Compliance
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
