Chevy S8 20 Inch Grille Light Bar Kit – Chevy 2019-21 Silverado 1500

SKU: 447519
starting at:
$824.95 $0.00
SELECT YOUR VEHICLE*
PRODUCT OPTIONS

DESCRIPTION

The Baja Designs S8 20-Inch Grille Light Bar Kit takes your Chevy’s lighting to the next level. This Silverado S8 Grille kit keeps a low profile while pumping out brilliant light. The 20-inch S8 bar emits 12,700 brilliant lumens via 16 Cree LEDs. All with a low amp draw to put less strain on your battery.The S8 also features a backlit feature that stands out in the dark.

A clean aluminum frame with scalloped housing, machined aluminum bezel, and stainless steel hardware protects the circuity from water or debris. The LEDs last nearly 50,000 hours while being fully waterproof and exceeding mil-spec testing for reliability.

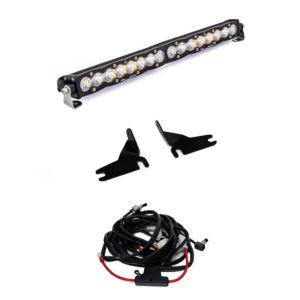

The kit includes mounts that fit into factory locations without cutting, or trimming and includes both the wiring and a 20-inch S8 Driving / Combo for an easy install. The Driving/Combo pattern is equipped with both Driving (42 degrees) and spot (8 degrees) optics to provide you with a smooth blend of light for both near-field applications and distance (Lighting Zone 3).

  • Satisfaction Guarantee – 30-Day Money Back Guarantee
  • Limited Lifetime Warranty – Complete Purchase Protection
  • uService – Replaceable Lenses And Optics
  • ClearView – All The Light, Right Where You Need It
  • MoistureBlock – Waterproof, Rain Proof, Submersible
  • CopperDrive – Only LED Driven At 100 Percent
  • 5000K Daylight – Less Driver Fatigue, Natural Color

Note:
NOTE: Compatible on vehicles equipped with Active Aero Shutter Technology; Not compatible on LTZ Models

FITS

2019-2021 Chevrolet Silverado 1500
Detailed Specs
Included with kit:

SKU: 702003

Specifications

Product Type S8 20 Inch LED Light Bar
Description Driving/Combo; Clear
Beam Pattern Driving/Combo
Lens Color Clear
Lighting Modes Beam/Amber Backlit Feature
Light Quantity 1
Lighting Type Forward Projecting
Lighting Technology Cree LED
Lighting Quantity 16
Brightness (Lumens) 12,700
Wattage (W) 120
Amperage Rating (A) 8.0
Average Rated Life (hr.) 49,930
Housing Color Black
Housing Material Aircraft Grade Aluminum with Mil-Spec Hard Anodize
Lens Material Hardcoated Polycarbonate
Bezel Material Billet Machined Aluminum
Mounting Hardware Included Yes
Mounting Hardware Description Mounting Brackets
Mounting Hardware Material Stainless Steel
Wiring Harness Included No
Overvoltage Protection Built-In
Universal or Specific Universal

Dimensions

Length (in.) 20
Height (in.) 1.6
Depth (in.) 3
Weight (lbs.) 4.5

Standards & Compliance

Patent No. D780,964
Standards/Compliance (Durability) Exceeds MIL-STD810G (Mil-Spec Testing)
Standards/Compliance (Water Resistance) IP69K (Waterproof up to 9ft & Pressure Washable)
Standards/Compliance (Impact Resistance) IK10 Compliant (Mechanical Impact Testing)
