Can-Am OnX6+ 40 Inch Roof Mount Light Bar Kit - Can-Am 2017-21 Maverick X3

SKU: 447085
starting at:
$1,637.95
All Baja Designs LED products (except RTL and SAE) are experiencing 4-6 week average lead times. We are shipping orders as quickly as possible.
SELECT YOUR VEHICLE*
PRODUCT OPTIONS

DESCRIPTION

New for the Can-Am Maverick X3 is the robust roof-mount kit for a 40-inch S8 Light Bar. The latest generation of the OnX series is brighter, bolder, and better so you have the visibility for after-dark adventures. We use Cree LEDs that last up to 50,000 hours and have a 5000K light temperature; this mimics natural daylight for better trail recognition and less eye fatigue.

At an impressive 38,900 lumens, the brightest just got up to 69% brighter. The OnX6+ LED light bar also integrates Baja Designs’ trademarked High Speed Spot reflector, the same one used by our Team Enlightened racers, to give you the guaranteed furthest projecting LED Light Bar on the planet. In addition, the OnX6+ LED light bar adopts industry standard sizing and is now compatible with aftermarket mounting systems. An industry first 30-day Satisfaction Guarantee & Limited Lifetime Warranty is included for the ultimate in purchase protection.

This system allows for stable and secure mounting on the normal Maverick X3 or on the rock crawler variant. Attach a high-power LED light bar to the front grille, hood, or roof of your off-road vehicle and see the night in a whole new way.

  • Satisfaction Guarantee – 30 Day Money Back Guarantee
  • Limited Lifetime Warranty – Complete Purchase Protection
  • uService – Replaceable Lenses And Optics
  • ClearView – All The Light, Right Where You Need It
  • MoistureBlock – Waterproof, Rain Proof, Submersible
  • CopperDrive – Only LED Driven At 100%
  • 5000K Daylight – Less Driver Fatigue, Natural Color

FITS

2018-2018 Can-Am Maverick X3 900 HO
2021-2022 Can-Am Maverick X3 DS Turbo
2020-2021 Can-Am Maverick X3 DS Turbo R
2021-2022 Can-Am Maverick X3 Max DS Turbo
2020-2021 Can-Am Maverick X3 Max DS Turbo R
2020-2021 Can-Am Maverick X3 Max RS Turbo R
2018-2020 Can-Am Maverick X3 Max Turbo
2017-2019 Can-Am Maverick X3 Max Turbo R
2017-2019 Can-Am Maverick X3 Max X ds Turbo R
2020-2022 Can-Am Maverick X3 Max X ds Turbo RR
2020-2022 Can-Am Maverick X3 Max X mr Turbo RR
2017-2019 Can-Am Maverick X3 Max X rs Turbo R
2020-2022 Can-Am Maverick X3 Max X rs Turbo RR
2021-2022 Can-Am Maverick X3 Max X rs Turbo RR Smart-Shox
2020-2021 Can-Am Maverick X3 RS Turbo R
2018-2021 Can-Am Maverick X3 Turbo
2017-2019 Can-Am Maverick X3 Turbo R
2017-2019 Can-Am Maverick X3 X ds Turbo R
2020-2022 Can-Am Maverick X3 X ds Turbo RR
2018-2021 Can-Am Maverick X3 X mr Turbo
2018-2019 Can-Am Maverick X3 X mr Turbo R
2020-2021 Can-Am Maverick X3 X mr Turbo RR
2018-2021 Can-Am Maverick X3 X rc Turbo
2018-2019 Can-Am Maverick X3 X rc Turbo R
2020-2021 Can-Am Maverick X3 X rc Turbo RR
2017-2019 Can-Am Maverick X3 X rs Turbo R
2020-2022 Can-Am Maverick X3 X rs Turbo RR
2021-2022 Can-Am Maverick X3 X rs Turbo RR Smart-Shox
SEE ALL
Detailed Specs

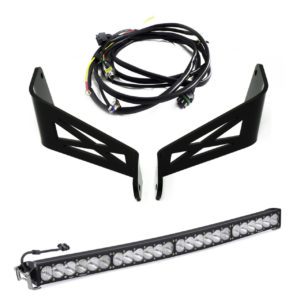

Included with kit:

SKU: 454003

Dimensions

Depth (in.) 4.29
Height (in.) 2.69
Length (in.) 40
Weight (lbs.) 15.05

Specifications

Amperage Rating (A) 26.8 (High); 22.4 (Low)
Average Rated Life (hr.) 49,930
Beam Pattern Driving/Combo
Bezel Material Billet Machined Aluminum
Brightness (Lumens) 38,900 (High); 32,440 (Low)
Description Straight; Driving/Combo; Clear
Housing Color Black
Housing Material Aircraft Grade Aluminum with Mil-Spec Hard Anodize
Lens Color Clear
Lighting Modes Hardcoated Polycarbonate
Light Quantity 1
Lens Material High Beam/Low Beam
Lighting Quantity 24
Lighting Type LED
Lighting Technology Forward Projecting
Mounting Hardware Description Mounting Brackets
Mounting Hardware Included Yes
Mounting Hardware Material Stainless Steel
Overvoltage Protection Built-In
Product Type OnX6+ 40 Inch LED Light Bar
Universal or Specific Universal
Wattage (W) 346 (High); 290 (Low)
Wiring Harness Description Hi-Low Dongle
Wiring Harness Included No

Standards & Compliance

Standards/Compliance (Durability) Exceeds MIL-STD810G (Mil-Spec Testing)
Standards/Compliance (Water Resistance) IK10 Compliant (Mechanical Impact Testing)
Standards/Compliance (Impact Resistance) IP69K (Waterproof up to 9ft & Pressure Washable)
Installation Instructions
Disclaimer and Warning

Disclaimer

Buyer is responsible for ensuring that it uses the products (and its vehicle) in accordance with all applicable laws, regulations, guidelines, and standards of care. Buyer acknowledges that some products may only be used when off-roading, and Buyer will comply with all vehicle and road safety guidelines. Buyer is solely responsible for (and will indemnify and hold Bestop harmless for) any claims, losses, damages, fines, fees, costs, or other amounts arising out of Buyer’s non-compliance with these provisions.

Baja Designs California Proposition 65

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Baja Designs American Passion, Quality and Performance

Vehicle Lighting Zones
The needs of every off-roader are different, so we've created a Lighting Zone system to help you mix and match the right products, with the right lenses, in the right places to achieve the absolute best results.
Learn more about each zone's placement, power, and pattern.
Learn more
