6XL Linkable Bumper Light Kit - Ford 2021-On Bronco; 2022-On Bronco Raptor; NOTE: w/ OEM Modular Steel Bumper

starting at:
$1,585.95
  • Note: Will not work on the capable bumper
SELECT YOUR VEHICLE*
PRODUCT OPTIONS
Proposition 65 Warning
Baja Designs California Proposition 65

Description

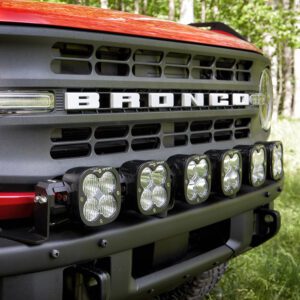

The Baja Designs 6XL Linkable bumper kit for the 2021-on Ford Bronco with OEM modular steel bumper is designed for the enthusiast looking to take charge with a powerful light setup while hitting the trails or driving through rutted roads at night. Utilizing our 6XL Linkable light bar, this kit produces 18,900 total raw lumens of forward projected light that has a smooth blend due to the use of our spot, driving combo, and wide cornering lenses. A main feature, the XL Linkable system provides 45 degrees of vertical pitch adjustment within each light or the entire unit as a completely independent horizontal adjustment per light allows for arc or straight configurations to perfectly match the lines of your Ford Bronco. A main benefit of this kit is no hood glare as this kit mounts on the front bumper, providing distraction-free light in front of your vehicle.  This kit comes with everything you need to hit the trail, with wiring fully crimped and trimmed allowing for an easy installation process and six black rock guards to protect your lights when not in use. All Baja Designs lights are backed by our 30-day satisfaction guarantee and lifetime limited warranty for the ultimate in purchase protection.

Features:

  • Designed for the Bronco OEM Modular Steel Bumper ONLY
  • XL Linkable system offers 45-degree of vertical pitch adjustment within each light or entire unit
  • Independent horizontal adjustment allows for straight or arc configurations
  • Bronco Raptor Upfitter wiring will have AUX1 and AUX3 colors switched when compared to the regular Bronco.
  • Note: This lightbar may interfere with a portion of the viewing window in front-facing camera-equipped vehicles.

447750 Toggle Switch Kit Includes:

  • (1x) 6XL Linkable Light Bar
  • (2X) Mounting Brackets
  • (1x) Toggle Switch Wiring Harness 640115
  • (6x) Rock Guards, Black with Baja Designs logo
  • All necessary mounting hardware

447750UP Upfitter Kit Includes:

  • (1x) 6XL Linkable Light Bar
  • (2X) Mounting Brackets
  • (1x) Upfitter Wiring Harness 640094
  • (6x) Rock Guards, Black with Baja Designs logo
    All necessary mounting hardware

uService – Replaceable Lenses And Optics

ClearView – All The Light, Right Where You Need It

MoistureBlock – Waterproof, Rain Proof, Submersible

CopperDrive – Safely Driving LEDs at 100 percent

5000K Daylight – Less Driver Fatigue, Natural Color

FITS

Ford Bronco 2021-2024
Ford Bronco Raptor 2022-2023
Detailed Specs
Included with kit:

SKU: 740004

Dimensions

Depth (in.) 2.8
Height (in.) 4.43
Length (in.) 39.16

Specifications

Amperage Rating (A) 12
Average Rated Life (hr.) 49,930
Beam Pattern Multi-Pattern
Bezel Material Billet Machined Aluminum
Brightness (Lumens) 18,972
Description 6XL Sport; Multi-Pattern; Clear
Housing Color Black
Housing Material Hard Anodized and Powder Coated Cast Aluminum
Lens Color Clear
Lens Material Hardcoated Polycarbonate
Light Quantity 6
Lighting Modes Beam
Lighting Quantity 24
Lighting Technology LED
Lighting Type Forward Projecting
Mounting Hardware Description Pre-Load Kit; Links; Rock Guards
Mounting Hardware Included Yes
Mounting Hardware Material Stainless Steel
Overvoltage Protection Built-In
Product Type XL Linkable LED Light Bar
Universal or Specific Universal
Wattage (W) 156
Wiring Harness Included Yes

Standards & Compliance

Standards/Compliance (Durability) Exceeds MIL-STD810G (Mil-Spec Testing)
Standards/Compliance (Impact Resistance) IK10 Compliant (Mechanical Impact Testing)
Standards/Compliance (Water Resistance) IP69K (Waterproof up to 9ft & Pressure Washable)
Installation instructions
Disclaimer and Warning

Disclaimer

Buyer is responsible for ensuring that it uses the products (and its vehicle) in accordance with all applicable laws, regulations, guidelines, and standards of care. Buyer acknowledges that some products may only be used when off-roading, and Buyer will comply with all vehicle and road safety guidelines. Buyer is solely responsible for (and will indemnify and hold Bestop harmless for) any claims, losses, damages, fines, fees, costs, or other amounts arising out of Buyer’s non-compliance with these provisions.

Baja Designs California Proposition 65

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Baja Designs American Passion, Quality and Performance

Vehicle Lighting Zones
The needs of every off-roader are different, so we've created a Lighting Zone system to help you mix and match the right products, with the right lenses, in the right places to achieve the absolute best results.
Learn more about each zone's placement, power, and pattern.
