Power Distribution System

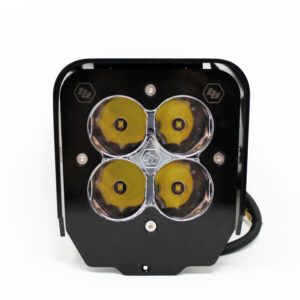

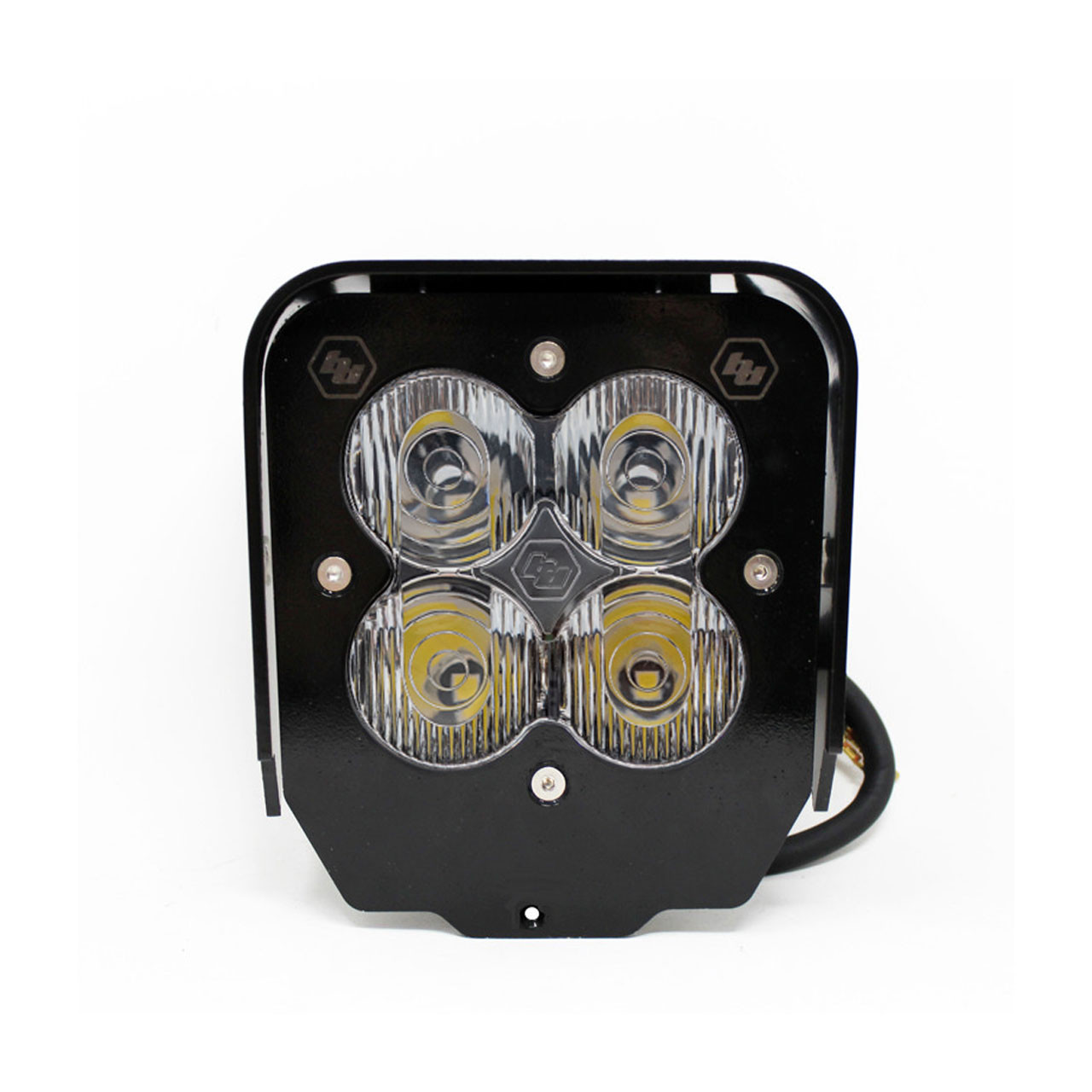

XL80 (D/C) Headlight Kit - Husqvarna 17-23 FE250/350; ’20-23 FE350S; ’17-19 FE450; ’17-19 FE501; ’19-23 FE501S; ’20-23 TE150i-300i/TX300i; ’16-23 701 Enduro; 701 EnduroLR
OR
Description
The Husqvarna XL80 has been designed for the enthusiast and the racer looking to extend their ride time and annihilate the night. This kit features an extreme amount of beam pattern adjustability. Our High-Speed Spot Reflectors provide record setting distance, wide peripheral spread. Installed with our new Trail Lens, designed for 1st-4th gear technical trail riding that redirects the immense light of the XL80 from the center beam to near and midfield peripheral areas that improve visibility through vertical transitions and tight turns in technical terrain. A seamlessly smooth beam pattern,and offers a 20 percent dimming feature. With the amount of light produced by the XL80 you will have an extreme blend of near field and mid field lighting. An industry first 30-Day Satisfaction Guarantee and Limited Lifetime Warranty is included for the ultimate in purchase protection.
XL80 Specifications (per light):
- Includes pre-installed Trail lens for 1st-4th gear technical trail riding
- Improve visibility through vertical transitions and tight turns in technical terrain
- Lumens: 9,022
- 75.9W / 5.5A
The Baja Designs Advantage:
• Satisfaction Guarantee – 30-Day Money Back Guarantee
• Limited Lifetime Warranty – Complete Purchase Protection
• uService – Replaceable Lenses And Optics
• ClearView – All The Light, Right Where You Need It
• MoistureBlock – Waterproof, Rain Proof, Submersible
• CopperDrive – Only LED Driven At 100 Percent
• 5000K Daylight – Less Driver Fatigue, Natural Color
OEM Headlight shell NOT included. (Does Fit 701 Model). Electric start bikes that require a stator modification or rewind will have to the purchase a switch and wiring harness kit. Please refer to the “STATOR Reference Chart” found under the Tech Info header. For Electric-Start Bikes: Some electric-start bikes require the stator to be modified or rewound as well as the addition of a new rectifier/regulator to run LED lights. If your bike requires a new rectifier/regulator please order part (#12-2004) (please provide year/make/model of bike). Detailed stator modification instructions and hardware is included for all bikes that require a stator modification to run LED lights. If your bike requires the stator to be rewound, please call Baja Designs for an order confirmation number to have this service performed.
SKU: 670003
Standards & Compliance
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
Specifications
| Wiring Harness Included | No |
| Wattage (W) | 75.900 |
| Universal or Specific | Universal |
| Average Rated Life (hr.) | 49,930 |
| Amperage Rating (A) | 5.500 |
| Beam Pattern | Spot |
| Bezel Material | Powder Coated Cast Aluminum |
| Description | Driving/Combo; Clear |
| Product Type | XL80 LED Light Pod |
| Overvoltage Protection | Built-In |
| Mounting Hardware Material | Stainless Steel |
| Mounting Hardware Included | Yes |
| Lighting Type | Forward Projecting |
| Lighting Technology | Cree LED |
| Lighting Quantity | 4 |
| Lighting Modes | High Beam/Dimming Feature (20%) |
| Light Quantity | 1 |
| Lens Material | Hardcoated Polycarbonate |
| Lens Color | Clear |
| Housing Material | Hard Anodized and Powder Coated Cast Aluminum |
| Housing Color | Black |
| Brightness (Lumens) | 9022 |
Dimensions
| Weight (lbs.) | 2.450 |
| Length (in.) | 4.430 |
| Height (in.) | 4.430 |
| Depth (in.) | 3.650 |
Disclaimer
Baja Designs California Proposition 65
