Ford OnX6+ 20 Inch Grille Light Bar Kit - Ford 2019-2023 Ranger
NOTE: Vehicles equipped with the “Active Cruise Control” will NOT be able to run this kit without removing or relocating the sensors.
OR
Description
The Baja Designs OnX6+ 20-inch LED light bar grille kit for the Ford Ranger (2019-2023) is the ultimate lighting kit for the popular Ford truck. The 20-inch OnX6+ light bar is the pinnacle of offroad lighting, offering 24, 920 raw lumens of powerful forward illumination to illuminate zones 1, 2 3, and 4. Race proven, the mil-spec aluminum housing of the OnX6+ has been designed to withstand rugged conditions that off-roaders will endure while on the trails. Our exclusive MoistureBlock technology ensures the light bar remains waterproof and dustproof even in the harshest conditions. This kit is mounted in the lower grille, and mounting the light doesn't require any drilling or modifications to your vehicle. To get you on the trail quickly, this LED light bar kit comes with everything you need for a clean installation. When you need an LED light bar that offers high-output LEDs with exceptional intensity, improved visibility and safety in various conditions, the OnX6+ LED light bar is the only choice for those that demand the best in lighting. Backed by our 30-Day Satisfaction Guarantee and Lifetime Limited Warranty for the ultimate in purchase protection. NOTE: Vehicles equipped with the "Active Cruise Control" will NOT be able to run this kit without removing or relocating the sensors.

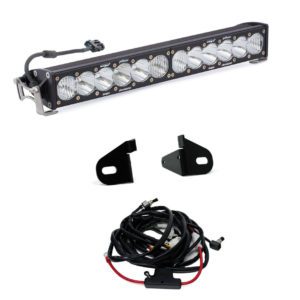

Kit Includes:
- (1x) OnX6+ 20-inch LED Light Bar – Driving Combo Clear
- (2x) Mounting Brackets
- (1x) Wiring Harness – 640115
- All Necessary Mounting Hardware
OnX6+ 20-inch Light Bar Specifications (per light):
- Lumens: 24,920 (High); 18,460 (Low)
- Watts/Amps: 216W (High); 160W (Low)/ 6 A(High); 12.0A (Low)
- NOTE: To take full advantage of Hi/Low functionality, you will need harness 640119
The Baja Designs Advantage
- uService – Replaceable Lenses and Optics
- ClearView – All the Light, Right Where You Need It
- MoistureBlock – Waterproof, Rain Proof, Submersible
- CopperDrive – Safely Driving LEDs at 100%
- 5000K Daylight – Less Driver Fatigue, Natural Color
- Satisfaction Guarantee – 30-Day Money Back Guarantee
- Limited Lifetime Warranty – Complete Purchase Protection
FITS
SKU: 452003
Dimensions
| Depth (in.) | 4.29 |
| Height (in.) | 2.69 |
| Length (in.) | 20 |
| Weight (lbs.) | 7.85 |
Specifications
| Amperage Rating (A) | 16.6 (High); 12.0 (Low) |
| Average Rated Life (hr.) | 49,930 |
| Beam Pattern | Driving/Combo |
| Bezel Material | Billet Machined Aluminum |
| Brightness (Lumens) | 24,920 (High); 18,460 (Low) |
| Description | Straight; Driving/Combo; Clear |
| Housing Color | Black |
| Housing Material | Aircraft Grade Aluminum with Mil-Spec Hard Anodize |
| Lens Color | Clear |
| Lens Material | Hardcoated Polycarbonate |
| Light Quantity | 1 |
| Lighting Modes | High Beam/Low Beam |
| Lighting Quantity | 12 |
| Lighting Technology | LED |
| Lighting Type | Forward Projecting |
| Mounting Hardware Description | Mounting Brackets |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | Stainless Steel |
| Overvoltage Protection | Built-In |
| Product Type | OnX6+ 20 Inch LED Light Bar |
| Universal or Specific | Universal |
| Wattage (W) | 216 (High); 160 (Low) |
| Wiring Harness Description | Hi-Low Dongle |
| Wiring Harness Included | No |
Standards & Compliance
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
