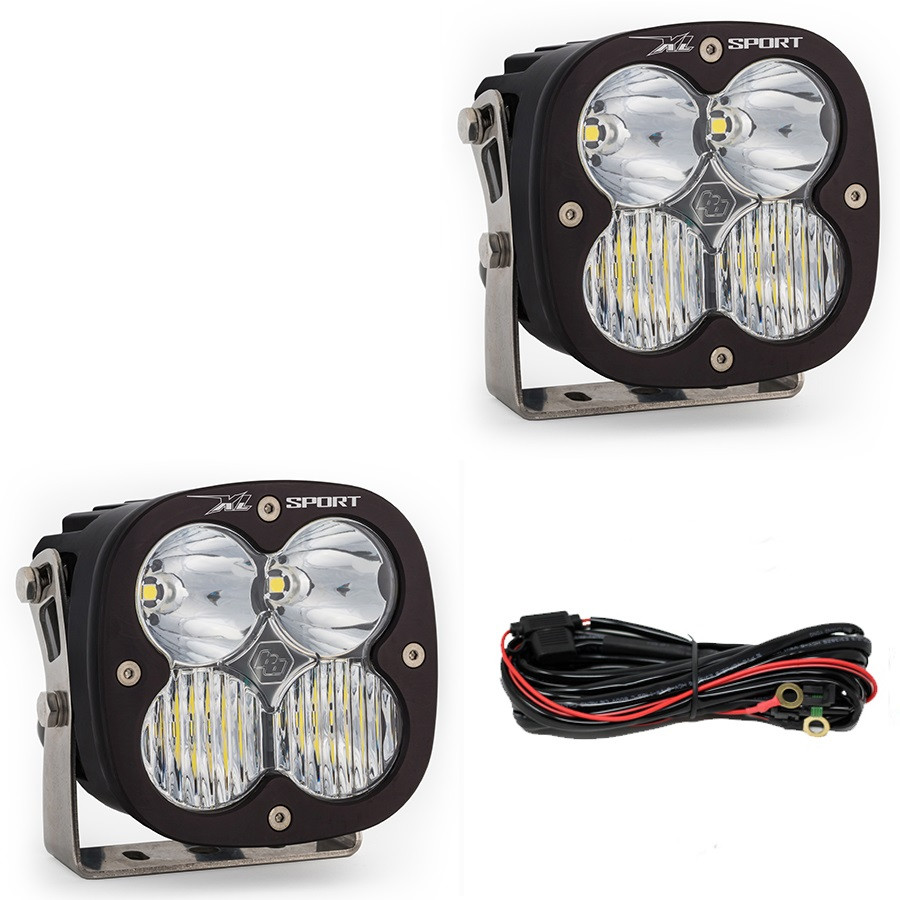

Jeep JL/JT XL Sport Bumper Light Kit - Jeep 2020-2025 Gladiator; 2018-2025 Wrangler JL; NOTE: w/ OE Steel Bumper
OR
Description
This lighting and wiring setup has been tested on the Jeep JL / JT with the Rubicon Steel bumper to take the guess work out of installation! The wiring in this kit is specifically designed to run in conjunction with factory upfitter systems or sPOD / Switch Pros units. The XL Sport makes it easy to light up your world in style, with the perfect combination of affordability and performance. The XL Sport LED light utilizes our trademarked High Speed Spot reflectors providing for a longer beam pattern. The XL Sport provides the same top of the line performance and aesthetics you expect from BD in an affordable solution. All Baja Designs LEDs are backed by a 30 Day Satisfaction Guarantee and Limited Lifetime Warranty for the ultimate in purchase protection.
Satisfaction Guarantee – 30-Day Money Back Guarantee
Limited Lifetime Warranty – Complete Purchase Protection
uService – Replaceable Lenses And Optics
ClearView – All The Light, Right Where You Need It
MoistureBlock – Waterproof, Rain Proof, Submersible
CopperDrive – Only LED Driven At 100 Percent
5000K Daylight – Less Driver Fatigue, Natural Color
A Skene dimmer must be purchased separately to enable the high/low feature.
FITS
SKU: 560003
Specifications
| Product Type | XL Sport LED Light Pod |
| Overvoltage Protection | Built-In |
| Mounting Hardware Included | Yes |
| Lighting Type | Forward Projecting |
| Lighting Technology | LED |
| Lighting Quantity | 4 |
| Lighting Modes | Beam |
| Light Quantity | 1 |
| Lens Material | Hardcoated Polycarbonate |
| Lens Color | Clear |
| Mounting Hardware Material | Stainless Steel |
| Universal or Specific | Universal |
| Wiring Harness Included | No |
| Wattage (W) | 30.360 |
| Housing Material | Powder Coated Cast Aluminum |
| Housing Color | Black |
| Description | Driving/Combo; Clear |
| Brightness (Lumens) | 3162 |
| Bezel Material | Powder Coated Cast Aluminum |
| Beam Pattern | Driving/Combo |
| Average Rated Life (hr.) | 49,930 |
| Amperage Rating (A) | 2.200 |
Standards & Compliance
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
Dimensions
| Weight (lbs.) | 2.450 |
| Length (in.) | 4.430 |
| Height (in.) | 4.430 |
| Depth (in.) | 3.650 |
